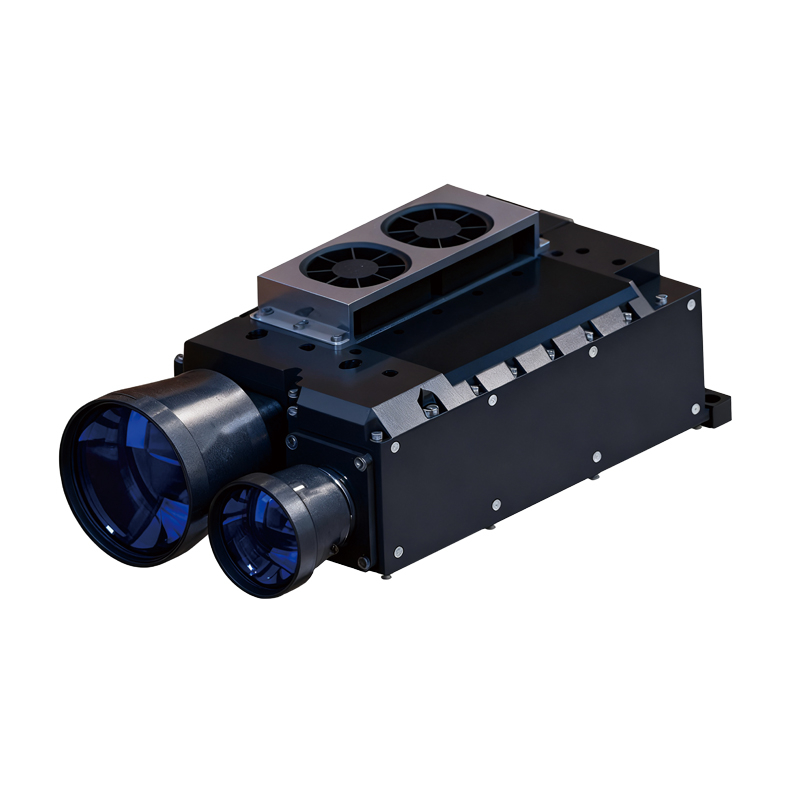

KCL-100

Laser Ranging Module
Availability:
Quantity:
Inquire Add to Basket


  • Wide-temperature athermal design: strong anti-detuning, stable optical axis, wide-temperature operation.

  • Unique pulse detection + auto-compensation: high energy stability.

  • Active Q-switched pumping: fine adjustment, high encoding precision.



  Wearable Devices ｜ UAV ｜ Portable Devices


Laser Type (nm) / Model Code KCL-100
Average Energy (mJ) ≥100 or ≥80
Energy Stability ≤10% (counted 2 seconds after light emission)
Divergence Angle (mrad) ≤0.16
Pulse Width (ns) 15±5
Irradiation Distance (m) ≥15000 (reference value)
Operating Frequency (Hz) Single-shot, 1, 5, 20
Coding Method Precise frequency coding, external synchronization
Coding Accuracy (μs) ≤±2.5
Communication Interface RS422 (can be modified to TTL)
Power Supply Voltage (V) 18~36
Standby Power Consumption (W) ≤11
Installation Method Bottom-end Installation
Dimensions (mm) ≤239×116×81
Weight (g) ≤2300
Operating Temperature (℃) -40~60
Storage Temperature (℃) -55~70
Special Design All-metal enclosed design, with strong anti-electromagnetic interference capability


Previous:
Next:

Related Products

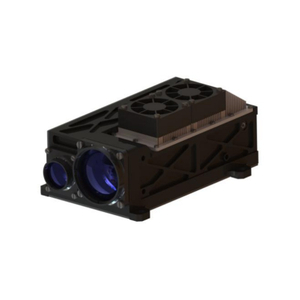

KCL-600
