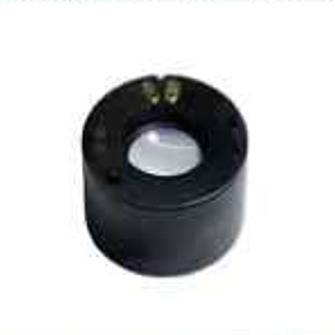

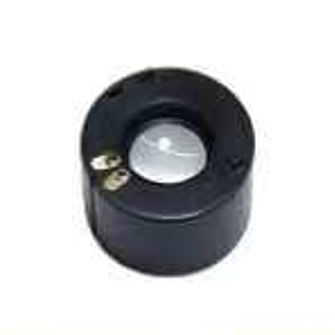

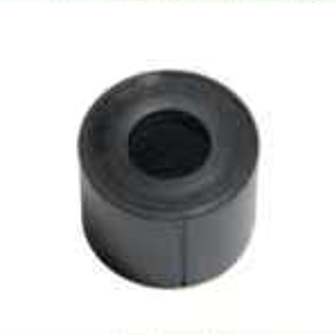

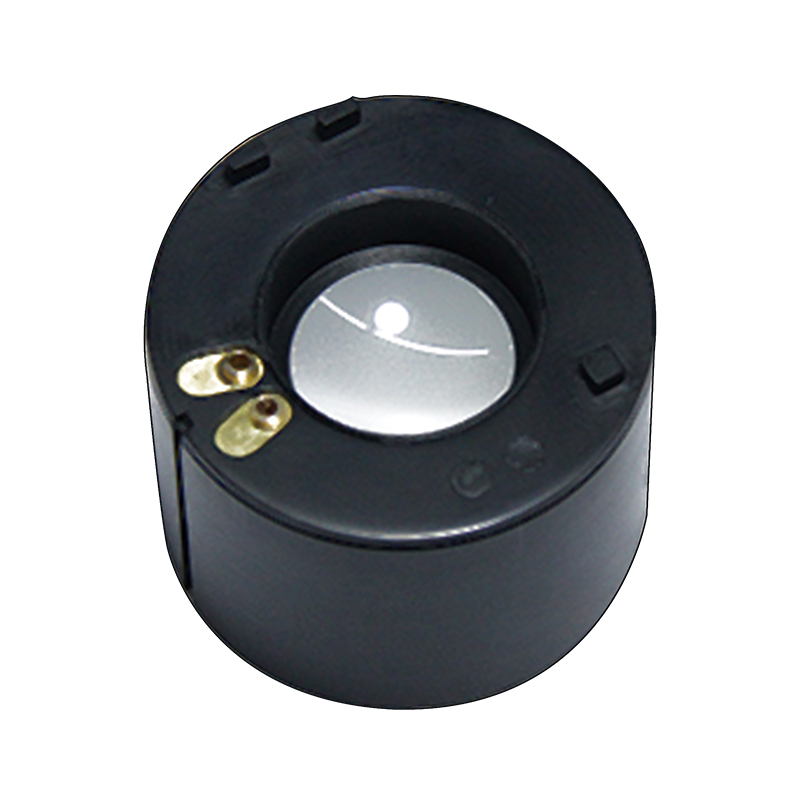

KCN-200

Low-Light Tube Module
Availability:
Quantity:
Inquire Add to Basket


  • KCN-200: Gen Ⅱ+ low-light image intensifier for single-tube binocular night vision devices in ultra-low-light environments.

  • Low-light amplifier, generates visible scenery images in low-illumination conditions.

  • Imaging in 3 steps: photocathode photoelectric conversion, MCP electron multiplication, fluorescent screen electro-optical conversion.



  Wearable Devices ｜ UAV ｜ Portable Devices


The Effective Diameter Of The Photodiode ≥17.5 mm
Cathode Material Na2KSb (Cs) -
Input Window AVG Glass -
Output Window Typical upright spherical surface (SR18), and customizable inverted plane, inverted spherical surface, and upright plane are also available -
Phosphor P43/P45 -
Quality Factor 1200 1400 1600 -
Signal-To-Noise Ratio ≥20 22 25 -
Resolution 60 64 64 1p/mm
Luminance Gain ≥6000 ≥8000 ≥10000 cd/㎡/lx
Maximum Output Brightness ≥4 cd/㎡
Equivalent Background Illuminance ≤0.25 μ1x
Working Current @3v ≤20 mA
Working Voltage 2.2-3.4 V
Weight ≤78 g
Power Supply Non-Gated/Gated -
Electrical Interface Lead Wire/Contact Piece -
Working Temperature -45~+55 ℃
Storage Temperature -55~+70 ℃


Black Dot Size /mm Φ≤5.6mm 5.6mm＜Φ≤14.7mm Φ＞14.7mm
≥0.228 0 0 0
0.152~0.228 0 1 1
0.075~0.152 0 2 2
