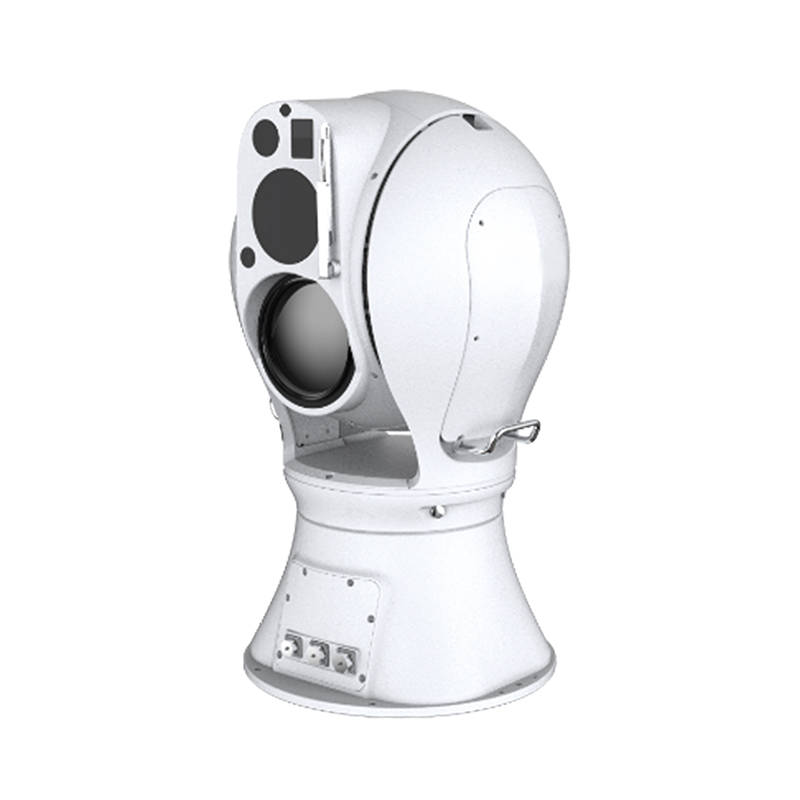

KMS-630 Uncooled Thermal Imaging Dual-spectrum Turret

Thermal Imaging Response Band

8~14 μm

Thermal Imaging Pixel Size

12 μm

Thermal Imaging Resolution

640 × 512

Thermal Imaging Focal Length

15~230mm

Thermal Imaging Field Of View

WIDE: 25.46°×20.49°
TELE: 1.91°×1.53°

Thermal Imaging Aperture Value

F0.9~F1.5

Thermal Imaging Optical Magnification

15

Thermal Imaging Image Stabilization Function

Electronic Image Stabilization

Pseudo-Color

A Variety Of Pseudo-Colors Such As Black Hot, White Hot, Iron Red And Rainbow (A Total Of 15 Modes)

Noise Equivalent Temperature Difference NETD

≤30 mk(@25 °C,F#=1.0)

Spatial Resolution MRAD

WIDE: 0.706
TELE: 0.052

Detection Distance (Person/Vehicle/Vessel)

Personnel : 9583 m; Vehicle: 29,389m；Vessel: 98,389 m

Identification Distance (Person/Vehicle/Vessel)

Personnel : 2396 m；Vehicle: 7347 m；Vessel: 24597m

Identification Distance (Person/Vehicle/Vessel)

Personnel : 1198m；Vehicle: 3674 m；Vessel: 12299 m

The Maximum Alarm Distance For Personnel (Based On 1.8 Meters *0.5 Meters)

3450m

The Maximum Alarm Distance Of The Vehicle (Based On 4 Meters *1.4 Meters)

6900m

The Maximum Alarm Distance For The Fire Point (Based On 2 Meters By 2 Meters)

18400m

The Maximum Alarm Distance Of The Vessel (Based On 10 Meters *5 Meters)

9200m

Visible Light Resolution

【 Details 】1920x1080, 2 Million Pixels; 【 Panoramic View 】2688x1520, 4 Million Pixels

Visible Light Focal Length

【 Details 】10- 1200mm; 【 Panoramic View 】4mm

Visible Light Field Of View Angle

【 Details 】Wide:40.73°×23.59°; Tele: 0.35 ° X 0.20 °

Visible Light Aperture Value

【 Panoramic View 】89.5°X47.9°

Visible Light Optical Magnification

【 Details 】F3.05-F11.53; 【 Panoramic View 】F1.0

Minimum Illuminance

【 Details 】120 Times;

Regional Enhancement

【 Panorama & Detail 】0.002 Lux/F1.5(Color),0.0002 Lux/F1.5(Black And White),0 Lux with IR;

Visible Light Focusing

The Roi Region Of Interest Is Enhanced

Visible Light Fogging

Semi-Automatic/Manual

Visible Light Image Stabilization Function

Optical Fogging

Visible Light Supplementary Lighting Function

【 Details 】 Optical Image Stabilization; 【 Panoramic View 】 None

The Maximum Alarm Distance For Smoke (Based On 5 Meters By 5 Meters)

16KM

Horizontal Velocity

0.01°~120°/s

Vertical Range

-45°~+45°

Vertical Velocity

0.01°~80°/s

The Number Of Preset Points

300个

Cruise Scanning

There Are 8 Items, And Each Item Can Add 300 Preset Points

Scanning Mode

Preset Points/Pattern Scanning/Cruise Scanning/Automatic Scanning/Vertical Scanning/Random Scanning/Frame Scanning/Panoramic Scanning

Blockage Alarm

Support

De-Icing Function

The Spherical Shell Supports Deicing Function

Positioning Accuracy

0.01°

Overvoltage And Undervoltage Alarm

Support

Gps Positioning

The external expansion positioning terminal supports the query of longitude, latitude and elevation information of the device's location, and supports GPS/ Beidou time calibration

Video Compression Standard

H.264/MJPEG;" H.264 encoding supports BaseLine/Main/High,Smart264/Smart265

Audio Compression Standard

G .711u/G.711a/G.722.1/MP2L2/G726/PCM

Alarm Input

2-Way (Switch Quantity)

Alarm Output

2 Outputs (Switch Quantity)

Audio Input

1 In (Line_in)

Audio Output

1 Exit (Line_ou)

Rs485 Control Interface

Supports Adaptive Hikvision, Pelco-P And Pelco-D(Optional) Protocols

Network Port

One Rj45 10m / 100m Adaptive Ethernet Port

Network Protocol

Ipv4 / Ipv6, Http, Https, 802.1 X, Qos, Ftp, Smtp, Upnp, Snmp, Dns, Ddns, Ntp, Rtsp, Rtcp, Rtp, Tcp, Udp, Igmp, Icmp, Dhcp, Pppoe, Bonjour

Application Programming Interface

An Open Api That Supports Software Integration, Standard Protocols (Psia, Cgi), And The Integration Of Hikvision Sdk And Third-Party Management Platforms

Local Storage

It Is Equipped With A Built-In Micro Sd Card Slot, Comes Standard With 128g, Supports Micro Sd/Sdhc/Sdxc Cards (Up To 2tb), And Can Support Manual Video Recording/Alarm Video Recording

Power Input

The power box supports wide-voltage input from AC110V to AC305V, 50/60Hz. The DC at the device end is 48V±20%

Working Temperature And Humidity

-40°C to 70°C, < 90% RH

Wind Resistance Grade

Level 12 (maximum 33 m/s)

Protection Grade

IP67, electromagnetic compatibility complies with GB/T17626.5 Level 4 standard

Shell Material

High-strength aluminum alloy, coated with three-proof paint, resistant to seawater corrosion, multi-dimensional free-form surface shape, low wind resistance

Installation

The gimbal can be quickly divided into two parts: the sphere and the base

Internal Design

Dual power supply redundancy protection, internal temperature monitoring, directional industrial defrosting device, high reliability.

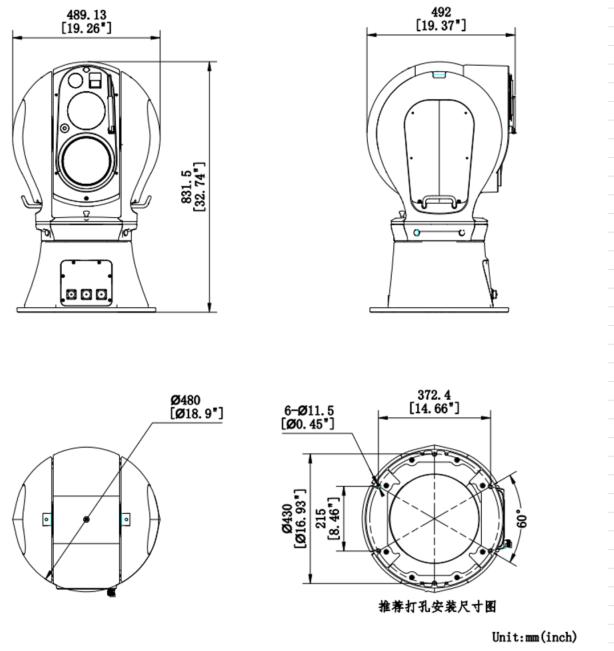

Size

Equipment: 489mm × 492mm × 831mm; Packaging: 710mm × 710mm × 1050mm

Weight

≤87kg

Power Consumption

Working power consumption: 45W Maximum power consumption: 460W

Power Adapter

Standard equipped with a dedicated power box; L424*W320*H132mm
