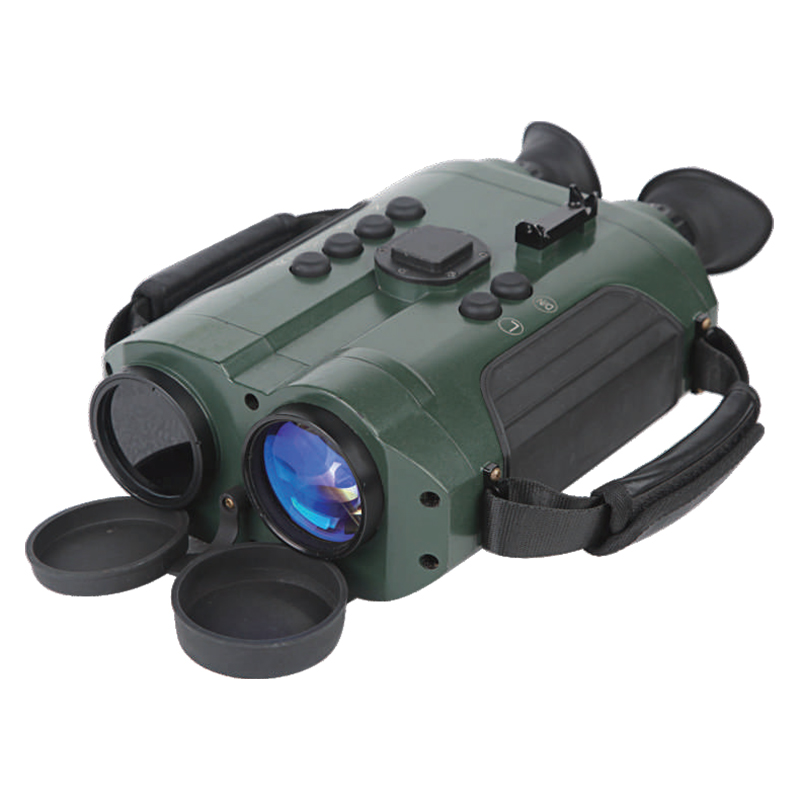

The KPT-100 handheld detector, a key part of sniper weapon systems, enables recon and aiming at key targets like commanders, snipers, observers, C4ISR, aircraft, missiles, radars, ammo depots, vehicles, and ships, as well as anti-cloak recon of optical-lens targets (telescopes, rangefinders, sights) within 1500m (1200m daytime).
![]() | ![]() | ![]() | ![]() |
The KPT-100 handheld detector, a key part of sniper weapon systems, enables recon and aiming at key targets like commanders, snipers, observers, C4ISR, aircraft, missiles, radars, ammo depots, vehicles, and ships, as well as anti-cloak recon of optical-lens targets (telescopes, rangefinders, sights) within 1500m (1200m daytime).
![]() | ![]() | ![]() | ![]() |
| Ensor | CCD |
| Detection Distance (Day Mode) (Telescope with ≥50mm lens, White Light Sight, Laser Rangefinder) | ≥1200m |
| Detection Distance (Night Mode) (Telescope with ≥50mm lens, White Light Sight, Laser Rangefinder) | ≥1500m |
| Laser Wavelength | 808 to 940nm |
| Laser Beam Angle | 4.5°±0.5° |
| Field of View (FOV) | ≥5° |
| Optical Magnification | ≥3X |
| GPS | Supported |
| Reticle Marking | Supported |
| Built-in Electronic Compass | Supported |
| Video Output | PAL |
| Electronic Zoom | Supported |
| Battery | Lithium Battery |
| Continuous Working Time | ≥4h |
| Operating Temperature | -30℃ ~ +50℃ |
| Waterproof | Yes |
| Power Supply | Yes |
| Length × Width × Height | ≤300×160×100mm |
| Weight | ≤2.5kg |
| Service Life | ≥10000h |
| Reliable Working Duration | ≥5000h |
| Ensor | CCD |
| Detection Distance (Day Mode) (Telescope with ≥50mm lens, White Light Sight, Laser Rangefinder) | ≥1200m |
| Detection Distance (Night Mode) (Telescope with ≥50mm lens, White Light Sight, Laser Rangefinder) | ≥1500m |
| Laser Wavelength | 808 to 940nm |
| Laser Beam Angle | 4.5°±0.5° |
| Field of View (FOV) | ≥5° |
| Optical Magnification | ≥3X |
| GPS | Supported |
| Reticle Marking | Supported |
| Built-in Electronic Compass | Supported |
| Video Output | PAL |
| Electronic Zoom | Supported |
| Battery | Lithium Battery |
| Continuous Working Time | ≥4h |
| Operating Temperature | -30℃ ~ +50℃ |
| Waterproof | Yes |
| Power Supply | Yes |
| Length × Width × Height | ≤300×160×100mm |
| Weight | ≤2.5kg |
| Service Life | ≥10000h |
| Reliable Working Duration | ≥5000h |
