KTM-1280

“Tactical Portable, One-Button Long-Range Detail Capture”

Quantity:
Availability:





Inquire Add to Basket

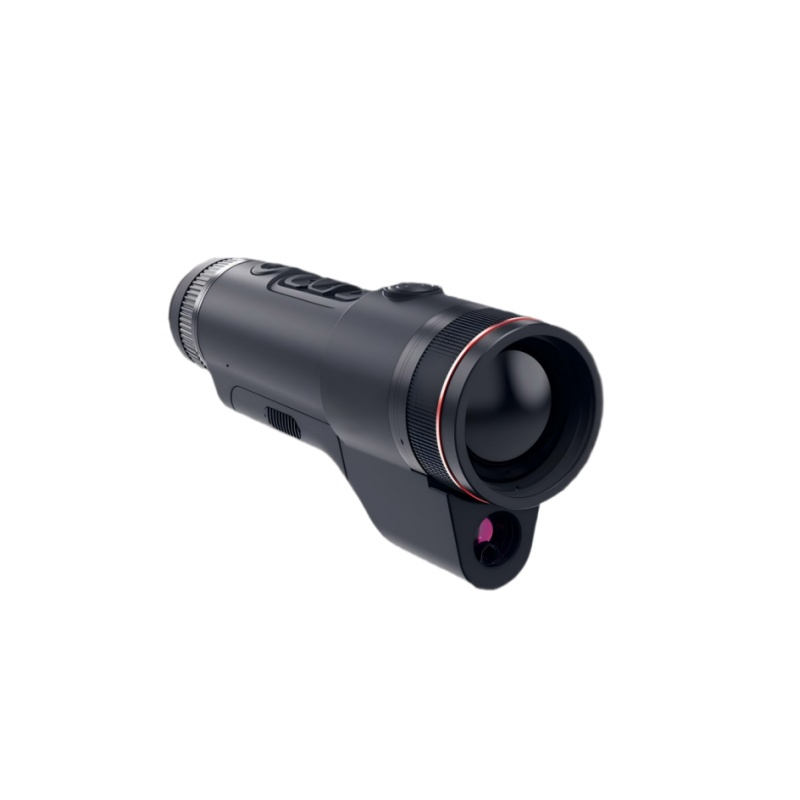

The KTM-1280 monocular handheld infrared telescope achieves a comprehensive upgrade in hardware configuration and software functionality, reaching new heights in image clarity, observation adaptability, and operational intelligence.

12μm high-sensitivity infrared detector, NETD down to 18mK
90-inch theater-level visual impact at 2.5m
Built-in laser rangefinder, max range 1500m
Special design for buttons & battery: supports blind operation in darkness, left/right-hand switchable, simultaneous audio recording during video

Related Products

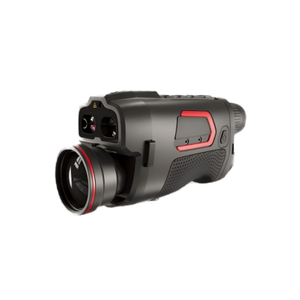

KTM-650

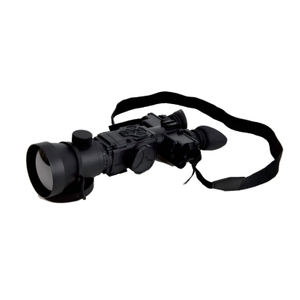

KTM-670

Category	Item	Specification
Sensor	Type	Vanadium Oxide Uncooled Infrared Detector, 8~14μm
	Resolution	1280×1024@12μm
	NETD	18mK
	Frame Rate	50Hz/120Hz
Lens	Focal Length	50mm, F1.0
	Field of View (FOV)	17.5°×14°
	FOV m@100m	31×25
	Overall Magnification	2.36x~37.76x
	Detection Distance (Human)	2600m
	Focusing Method	Manual
Display	Display Type	0.5'' AMOLED 1600×1200

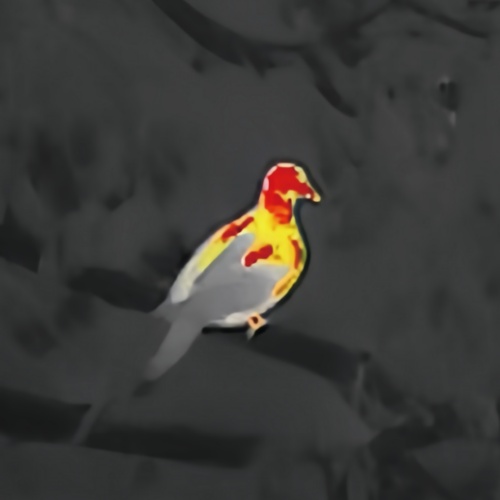

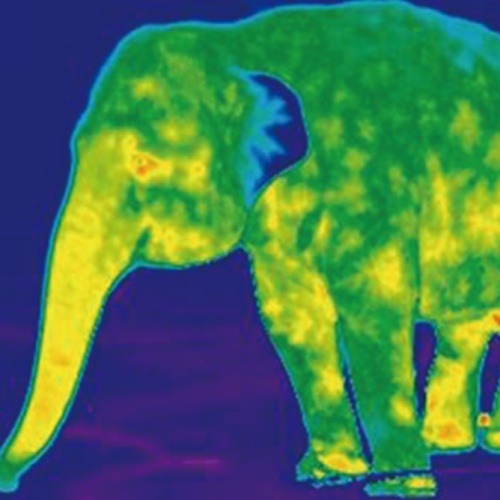

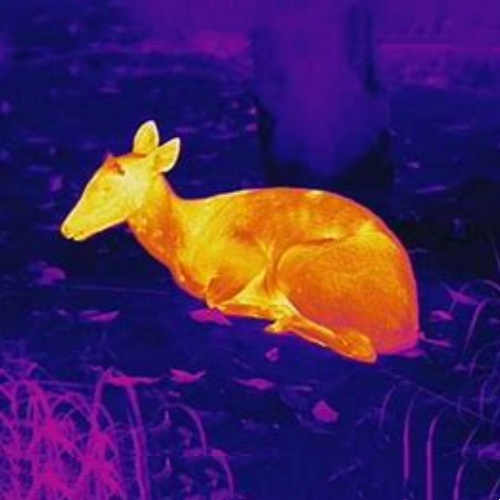

	Palette	White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Dark Brown
	Eyepiece	Exit Pupil Distance 16mm, Diopter ±6, Magnification 18x
Hardware Modules	Laser Rangefinder	1500m
	WIFI	2.4G, 5G
	Interface	USB Type-C, Supports Power Supply/USB2.0
	Others	Microphone, Compass, Gyroscope, Bluetooth
System	Photo/Video Recording	Supports Photo and Video (Audio Recording Synchronizable)
System	Memory Capacity	256GB
Power Supply	Battery	18650 Battery ×2
Power Supply	Operating Time	6 Hours
Environmental Parameters	Operating Temperature	-20°C~50°C
Environmental Parameters	Protection Class	IP67
Physical Parameters	Weight (g)	689
Physical Parameters	Dimension (mm)	247×101×70
Standard Configuration	Standard Accessories	Main Unit, Hand Strap, 18650 Battery ×2, Charging Dock, USB Type-C Cable, 5V2A Power Adapter, Quick Operation Guide, Warranty Card
Optional Accessories	Optional Items	Bluetooth Remote Control, 18650 Battery

Category	Item	Specification
Sensor	Type	Vanadium Oxide Uncooled Infrared Detector, 8~14μm
	Resolution	1280×1024@12μm
	NETD	18mK
	Frame Rate	50Hz/120Hz
Lens	Focal Length	50mm, F1.0
	Field of View (FOV)	17.5°×14°
	FOV m@100m	31×25
	Overall Magnification	2.36x~37.76x
	Detection Distance (Human)	2600m
	Focusing Method	Manual
Display	Display Type	0.5'' AMOLED 1600×1200
	Palette	White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Dark Brown
	Eyepiece	Exit Pupil Distance 16mm, Diopter ±6, Magnification 18x
Hardware Modules	Laser Rangefinder	1500m
	WIFI	2.4G, 5G
	Interface	USB Type-C, Supports Power Supply/USB2.0
	Others	Microphone, Compass, Gyroscope, Bluetooth
System	Photo/Video Recording	Supports Photo and Video (Audio Recording Synchronizable)
System	Memory Capacity	256GB
Power Supply	Battery	18650 Battery ×2
Power Supply	Operating Time	6 Hours
Environmental Parameters	Operating Temperature	-20°C~50°C
Environmental Parameters	Protection Class	IP67
Physical Parameters	Weight (g)	689
Physical Parameters	Dimension (mm)	247×101×70
Standard Configuration	Standard Accessories	Main Unit, Hand Strap, 18650 Battery ×2, Charging Dock, USB Type-C Cable, 5V2A Power Adapter, Quick Operation Guide, Warranty Card
Optional Accessories	Optional Items	Bluetooth Remote Control, 18650 Battery
