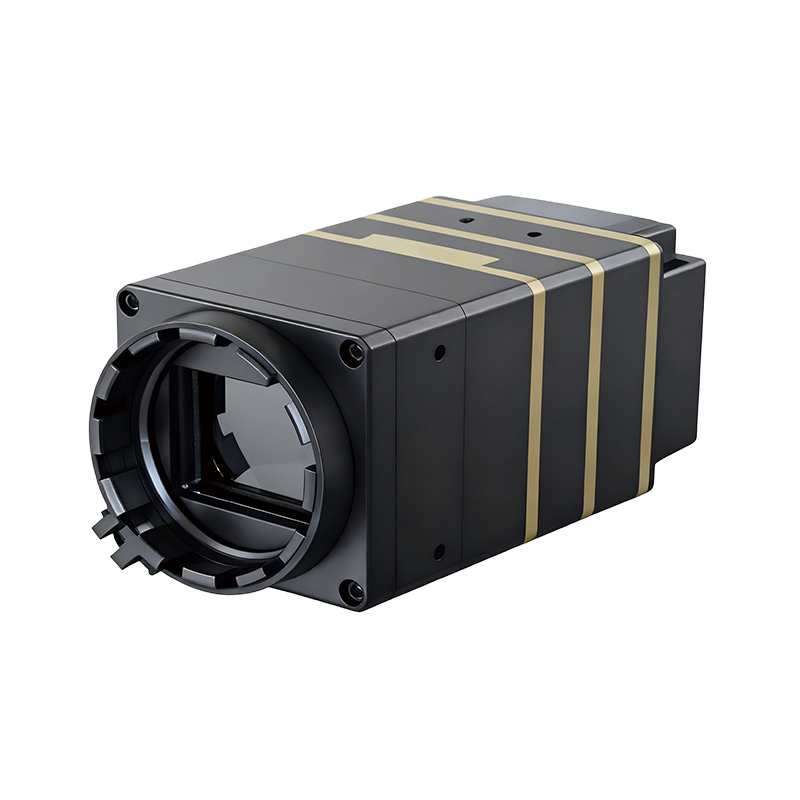

KCM-600

Thermal Imaging Core

Wearable Devices ｜ UAV ｜ Portable Devices

Related Products

Thermal Imaging	Sensor Type	Vanadium Oxide (VOx) Microbolometer
	Maximum Image Size	640 × 512
	Pixel Size	12μm
	Response Band	8~14 μm
	NETD (Noise Equivalent Temperature Difference)	≤40 mK (@25 °C, F#1.0)
	MRAD (Spatial Resolution)	1.2
	Thermal Imaging Lens Focal Length	9.1 mm
	Field of View (FOV)	48.3°(H) × 38.6°(V), 62.4°(D)
	Minimum Focus Distance	2m
	Maximum Aperture Value	F1.0
	Frame Rate	25Hz
Image Display	Output Resolution	720 × 576
	Electronic Zoom	×1, ×2, ×4, ×8
	Image Noise Reduction	Supported
	Bad Pixel Correction	Supported
	Mirroring	Off, Vertical, Horizontal, Center
	Image Detail Enhancement	Supported
	AGC Mode	Histogram
	Brightness Adjustment	Supported
	Pseudo-color Modes	Supports 15 modes including White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, etc.
	Contrast Adjustment	Supported
System Functions	Interface	CVBS Interface
System Parameters	Storage Temperature	-45 °C ~ +75 °C
	Storage Humidity	＜90% RH
	Vibration & Shock	Vibration: Sinusoidal vibration, 20m/s², 3 axes
	Vibration & Shock	Shock: Half-sine wave, 30g/11ms, 3 axes (6 directions)
	Operating Temperature	-40 °C ~ 80 °C
	Weight	≤23 g
	Dimension	37.82mm × 20mm × 20mm
	Power Consumption	≤0.95 W
	Power Input	DC 6 V - 17 V
