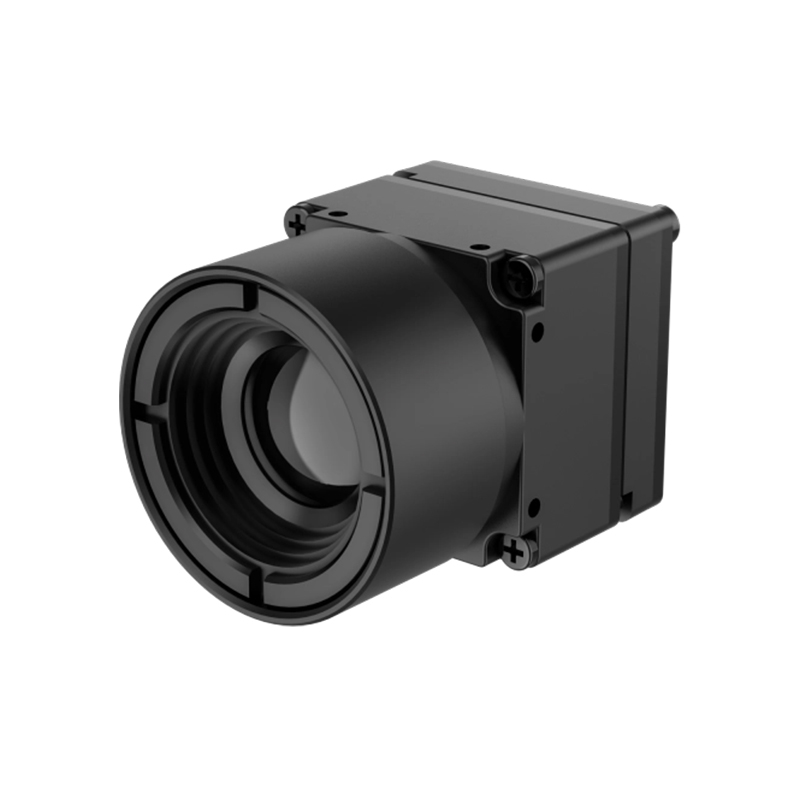

| Thermal Imaging |
Sensor Type |
Vanadium Oxide Uncooled Detector |
| Maximum Image Size |
640 x 512 (pixels) |
| Pixel Size |
12 micrometers |
| Response Band |
8~14 micrometers |
| NETD (Noise Equivalent Temperature Difference) |
< 35mk (@25 Celsius, F#=1.0) |
| Image Display |
Image Noise Reduction |
Supported |
| Bad Pixel Correction |
Supported |
| Mirroring |
Supported |
| Digital Video Output |
Supported |
| Analog Video Output |
CVBS Supported |
| Image Detail Enhancement |
Supported |
| AGC Mode |
Supported |
| Frame Rate |
50 Frames per second |
| Brightness Adjustment |
Supported |
| Pseudo-color Modes |
White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Dark Brown, Color 1, Color 2, Ice & Fire, Rain, Red Hot, Green-Blue, Deep Blue |
| Electronic Zoom |
x1, x2, x4, x8 |
| Contrast Adjustment |
Supported |
| System Functions |
Screenshot |
Supported |
| Video Recording |
Supported |
| Non-Uniformity Correction |
Supports automatic correction (timed, temperature difference), manual correction, and background correction |
| Overvoltage Protection |
Supported |
| Network Protocols |
IPV4/IPV6, HTTP, HTTPS, 802.1x, QOS, UPNP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPOE, BONJOUR |
| Application Programming Interface (API) |
Supports open API for software integration, open network video interface protocol, SDK, and third-party management platform access |
| Video Compression Standard |
H.264 / H.265 / MJPEG |
| Gray Scale Alarm |
Alarm methods (protocol upload / IO port alarm), alarm threshold configurable, alarm response time < 0.2s |
| Lens Interface Specification |
Supports M340.75mm, M451mm |
| Focus |
Supports manual focus, one-click focus, timed focus |
| Zoom |
Supports manual zoom |
| Focus Time |
Focus time < 5s |
| Parameter Saving |
Supported |
| System Parameters |
Power Consumption |
≤2.9 W (focus and zoom not activated) |
| Storage Temperature |
-45℃ ~ 85℃ |
| Storage Humidity |
＜90% RH |
| Operating Temperature |
-40℃ ~ 70℃ |
| Operating Humidity |
＜90% RH |
| Weight |
Less than 129g |
| Dimension |
40×41×65 (unit: mm, default if not specified) |
| Power Input |
DC12V (DC4.5V - DC14V) |
| Temperature Measurement Function |
Temperature Measurement Range |
-40°C ~ Ambient Temperature +70°C (when used with 25 mm lens) |
| Temperature Measurement Distance |
For 15mm, 25mm, 35mm, 50mm lenses: 1m ~ 25m |
| Temperature Measurement Accuracy |
Max (±8°C or ±8%) |
| Operating Temperature (for Temp. Measurement) |
-20°C ~ 50°C |
| General Specifications |
Accessories |
Interface Board *1, M45 Lens Mount *1, Focus & Zoom Cable |
