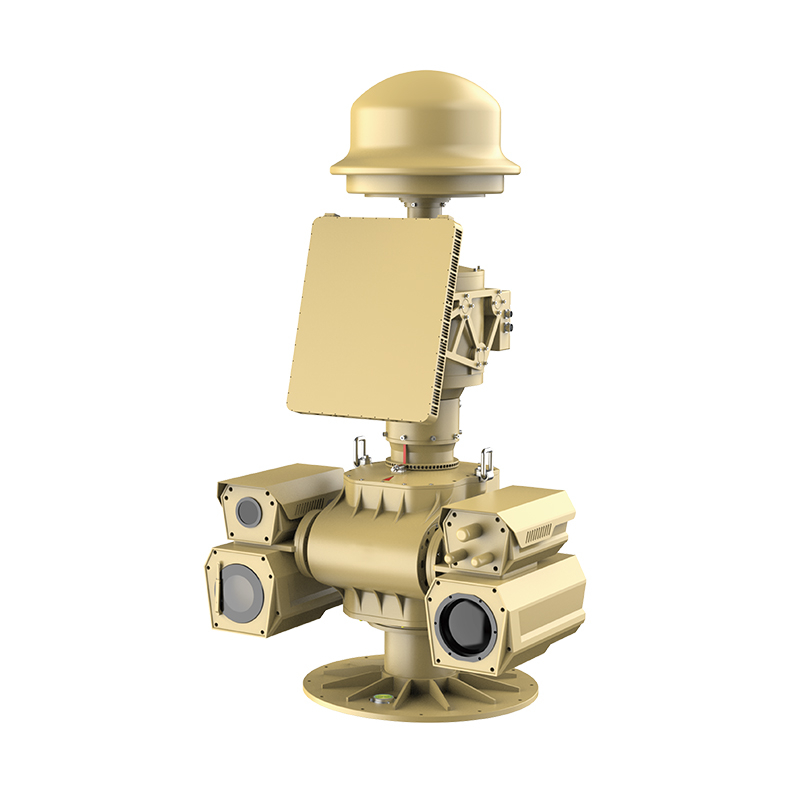

KMA-670 Heavy-Duty Side-Mounted Integrated Anti-Drone System

“Multi-Dimensional Detection, Integrated Counter-UAS Protection”

Quantity:
Availability:





Inquire Add to Basket

KMA-670 Heavy-Duty Side-MountedIntegrated Anti-Drone System: Composed of spectrum/radar detection, electro-optical tracking, suppression jamming, and defense recognition platform. Verifies targets via “spectrum + radar” dual detection, guides electro-optical system for secondary confirmation, then jams UAS (cuts signals, dazzles optics) to force descent/return. Meets all-weather low-altitude defense needs.

High Integration & Linkage:
Dual-layer servo modules, independent/efficient linkage for precise strikes.

Dual Detection & Recognition:
Spectrum (UAS signal) + radar (digital beamforming), dual verification boosts accuracy.

High-Precision Tracking:

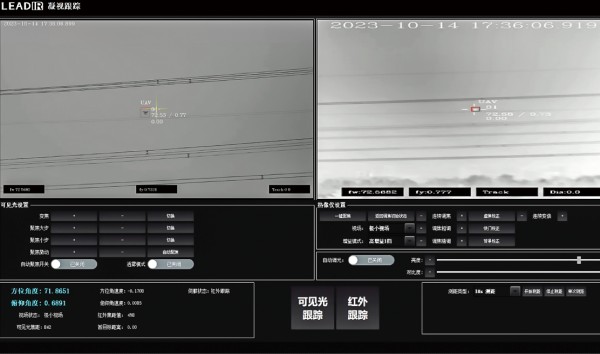

Electro-optical tracking with high-precision servo for stable UAS lock.

Soft-Hard Countermeasures:
Jamming integrates decoys + laser dazzling for dual strikes.

High Flexibility & Customization:
Modular design, independent subsystem installation, configurable modules.

Easy Deployment & Low Cost:
Simple install, one-key debugging, wide use, low maintenance.

Category	Item	Specification
Basic Information	Model Name	Heavy-Duty Side-Mounted Integrated Anti-Drone System
Operating Distance	Typical Target: DJI Phantom 4 - Spectrum Direction Finding	≥5km
	Typical Target: DJI Phantom 4 - Protocol Analysis	≥2km
	Radar Detection Distance	≥5km
	EO/IR Detection Distance	≥5km
	EO/IR Tracking Distance	≥4km
	Jamming Distance	≥5km
	Deception Distance	≥5km
	Laser Dazzling Distance	≥1km
Spectrum Detection	Monitoring & Identification Frequency Range	300MHz~6000MHz
	Direction Finding Frequencies	845MHz, 915MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
	Monitoring Bandwidth	≥120MHz
	Direction Finding Accuracy	≤3° (RMS in standard site)
	Simultaneous Detection Batches	≥30 drones
	Optional Function	Protocol analysis (optional)
Radar Detection	Radar Band	X-band
	Refresh Rate	2s
	Target Capacity	≥200 batches
	Short-Distance Blind Zone	≤50m
	Coverage Range - Azimuth	0°～360°
	Coverage Range - Elevation	0°～30° (60° optional)
	Coverage Range - Height	≥800m
	Accuracy (RMS) - Azimuth	≤0.4°
	Accuracy (RMS) - Elevation	≤0.4°
	Accuracy (RMS) - Distance	≤5m
Suppression Jamming	Radio Suppression - Jamming Bands	845MHz/915MHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz
	Radio Suppression - Amplifier Power	≥50W
	Radio Suppression - Navigation Deception Bands	Civil C/A code bands of GPS, GLONASS, BD satellite navigation systems
	Radio Suppression - Jamming Coverage (Azimuth)	0°～360°
	Radio Suppression - Jamming Coverage (Elevation)	-30°～60°
	Radio Suppression - Jamming Mode	Directional jamming
	Radio Suppression - Other Functions	Supports simultaneous operation of link jamming and navigation jamming
	Radio Suppression - Total Power	≤1200W
	Laser Dazzling - Operating Distance	1km
	Laser Dazzling - Laser Wavelength	532nm
	Laser Dazzling - Peak Power	≥0.5MW
	Laser Dazzling - Frequency	5Hz
	Laser Dazzling - Divergence Angle	≤8~9mrad

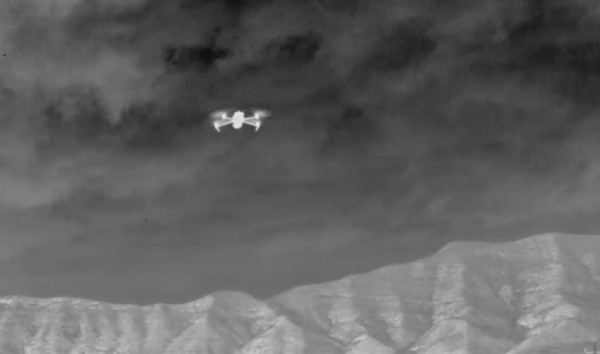

EO/IR Tracking	Infrared Thermal Imaging - Detector	Cooled focal plane array MCT detector
	Infrared Thermal Imaging - Resolution	640×512
	Infrared Thermal Imaging - Lens	22～450mm, 20x continuous optical zoom
	Infrared Thermal Imaging - Lens Control	Electric zoom, manual/automatic focus
	Infrared Thermal Imaging - Image Enhancement	SDE digital image detail enhancement technology
	HD Visible Light - Sensor	1/1.8" starlight-level CMOS, ICR color-to-black
	HD Visible Light - Resolution	2688×1520
	HD Visible Light - Focal Length	12.5～775mm HD electric zoom lens
	HD Visible Light - Fog Penetration	Supports dual EO/electronic fog penetration
	Laser Ranging - Operating Distance (Phantom 4 Target)	≥3km
	Laser Ranging - Band	1570nm
AI Tracking	AI Tracking - Computing Power	Built-in 16Tops computing power processor
	AI Tracking - Implementation	Front-end embedded hardware recognition and tracking
	AI Tracking - Tracking Modes	Manual, automatic tracking; supports radar linkage
	AI Tracking - Recognition Function	Supports classification and recognition of humans, vehicles, ships, drones, etc. (requires customer to provide dataset)
Servo Turntable	Servo Turntable - Structure	Side-mounted, coaxial
	Servo Turntable - Horizontal Range	N×360° continuous rotation; mechanical locking after power failure
	Servo Turntable - Elevation Range	-30°～+60°; with soft limit function, programmable
	Servo Turntable - Rotation Speed (Horizontal)	0.01°～100°/s
	Servo Turntable - Rotation Speed (Elevation)	0.01°～80°/s
	Servo Turntable - Acceleration (Horizontal)	100°/s²
	Servo Turntable - Acceleration (Elevation)	100°/s²
Interface & Power Consumption	Interface - Network Port	1×100M/1000M adaptive Ethernet port
	Power Supply	AC220V±20%, 50Hz
	System Power Consumption	≤3000W
	Total Weight	≤260kg
	Dimensions	≤800mm×800mm×1900mm

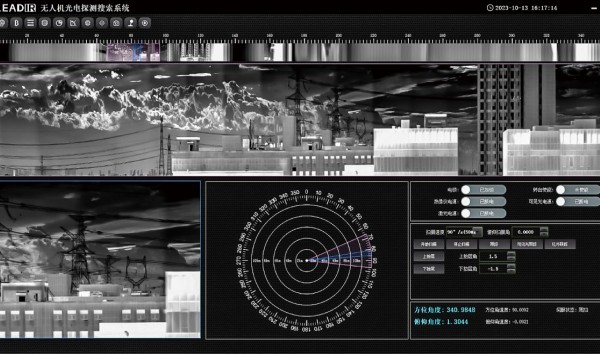

RGS2000 Low-Altitude Target Defense & Recognition System	Function 1	Integrated control and display, integrated platform design
	Function 2	Supports access to detection and disposal equipment
	Function 3	Supports situation display and situation distribution
	Function 4	Supports spectrum and radar track data fusion
	Function 5	Supports unattended operation and automatic strike

Related Products

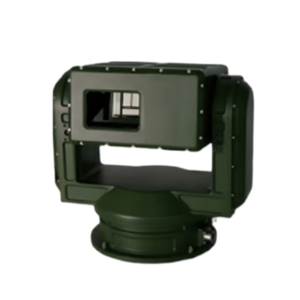

KMR-680 Cooled Thermal Electro-optical Panoramic Turret
