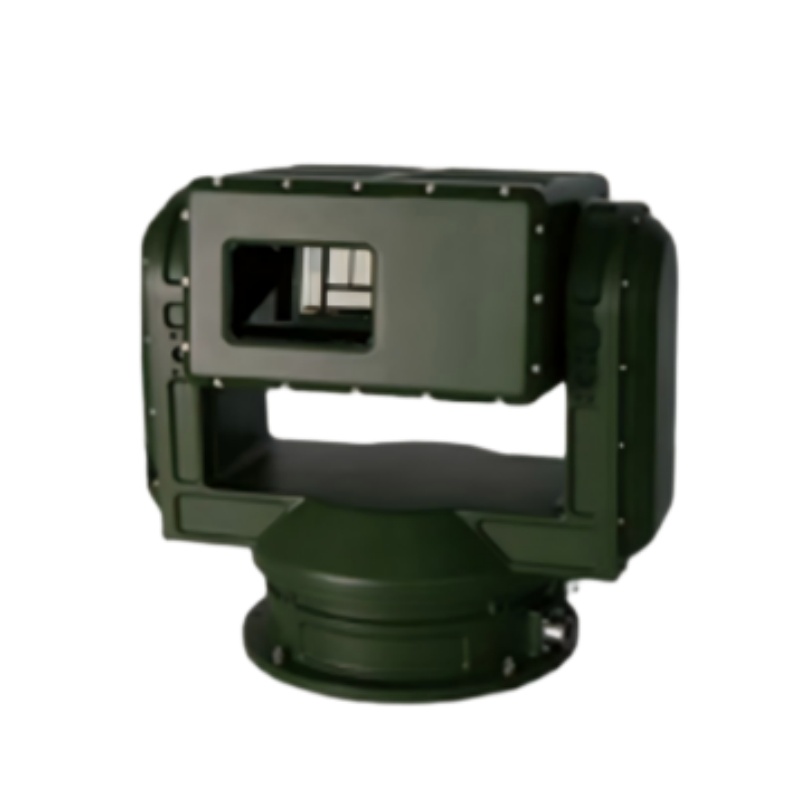

KMR-680 Cooled thermal electro-optical panoramic turret: For key area monitoring. Integrates panoramic infrared thermal imager + high-speed electro-optical turret, enables all-weather continuous observation, delivers efficient protection and precise situational awareness, fills traditional monitoring gaps.
360° Panoramic + Detail Dual-View
Real-time full-domain + key detail magnification, quick target capture, solves “unclear panoramic” pain point.
High-Precision Servo, Clear Imaging
Optical axis no jitter, infrared tech ensures smooth dynamic scanning.
All-Weather Adaptation
Unaffected by day-night/light/weather, works 24/7, breaks environment/time constraints.
Fast Target Positioning + Info Output
One-key target search, precise position output, shortens recognition response cycle.
Multi-Device Linked Guidance
Built-in linkage interface, guides remote devices to lock targets, upgrades “passive→active” protection.
Low Exposure, High Concealment
Infrared tech no visible light, high concealment, suits sensitive areas, reduces interference risks.

KMR-680 Cooled thermal electro-optical panoramic turret: For key area monitoring. Integrates panoramic infrared thermal imager + high-speed electro-optical turret, enables all-weather continuous observation, delivers efficient protection and precise situational awareness, fills traditional monitoring gaps.
360° Panoramic + Detail Dual-View
Real-time full-domain + key detail magnification, quick target capture, solves “unclear panoramic” pain point.
High-Precision Servo, Clear Imaging
Optical axis no jitter, infrared tech ensures smooth dynamic scanning.
All-Weather Adaptation
Unaffected by day-night/light/weather, works 24/7, breaks environment/time constraints.
Fast Target Positioning + Info Output
One-key target search, precise position output, shortens recognition response cycle.
Multi-Device Linked Guidance
Built-in linkage interface, guides remote devices to lock targets, upgrades “passive→active” protection.
Low Exposure, High Concealment
Infrared tech no visible light, high concealment, suits sensitive areas, reduces interference risks.

| Detection Distance | UAV (0.3m×0.3m, 2×2 Pixels) | 2400m |
| Human (1.8m×0.5m, 6×2 Pixels) | 4000m | |
| Vehicle (4.6m×2.3m, 6×3 Pixels) | 10000m | |
| Detector Parameters | Detector Type | Cooled Detector |
| Detector Resolution | 640×512 | |
| Pixel Size | 15μm | |
| Operating Wavelength | 3~5μm | |
| Temperature Sensitivity | ≤25mK | |
| Optical Parameters | Lens Focal Length | 240mm |
| Field of View | 2.3°×1.8° | |
| F-Number | F2.0 | |
| Operating Parameters | Frame Rate | 100Hz |
| Turntable Horizontal FOV Range | 360° | |
| Turntable Tilt Adjustment Range | -45°~+45° | |
| Maximum Scanning Speed | 180°/s | |
| Environmental & Protection | Protection Class | IP66 |
| Operating Temperature | -25℃~+55℃ | |
| Mechanical & Installation | Total Weight | ≤120kg |
| Installation Method | Base Fixed Installation | |
| Appearance Color | Customizable Color | |
| Power & Communication | Power Supply | DC24V, with wide-input waterproof regulated power supply, Power Consumption ≤350W |
| Communication Interface | Gigabit Ethernet |
