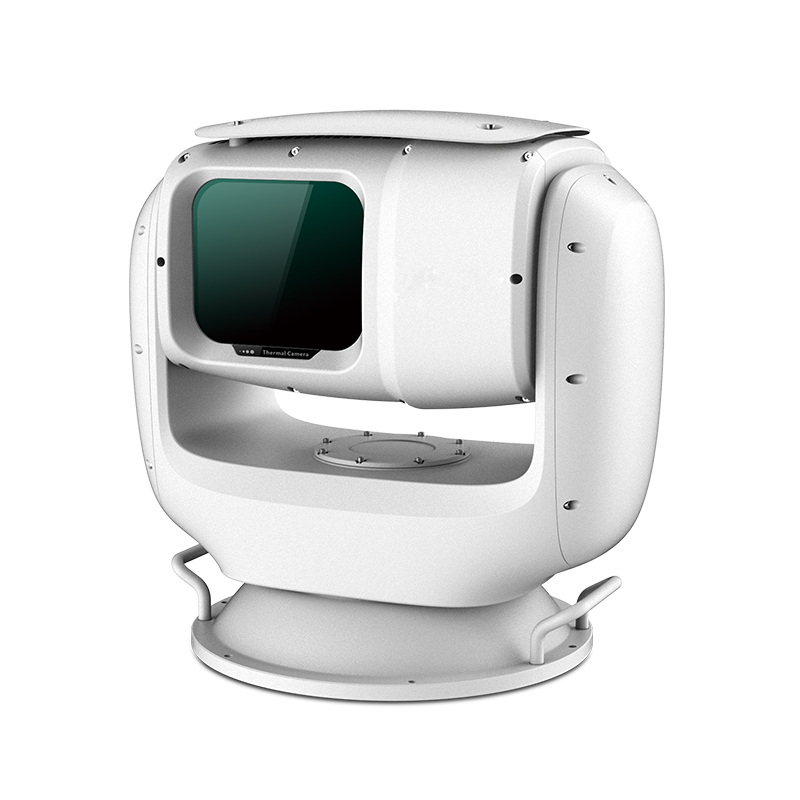

KMR-670 Uncooled Thermal Imaging Electro-Optical Panoramic Turret

“IR Penetrates Haze, Panoramic Day-Night Guard”

Quantity:
Availability:





Inquire Add to Basket

KMR-670 Uncooled Thermal Imaging Electro-Optical Panoramic Turret: Focuses on long-range monitoring, all-scenario professional rotating monitoring. Uses infrared thermal imaging to break light/haze limits, enabling wide-coverage, covert day-night continuous monitoring. Supports intrusion/crossing detection, links with ordinary PTZs for intelligent verification of people/vehicles/ships/aircraft, reliable for monitoring scenarios.

Multi-Dimensional Precise Detection:
Supports area intrusion, crossing, entry/exit & intelligent fire point detection to capture anomalies.
Flexible Panoramic View:
360° panoramic preview, 3 configurable ROI areas, balances global monitoring & detail observation.
Efficient Linked Recognition:
Supports radar linkage, enables precise identification of people/vehicles/ships/aircraft with PTZ-like products.
Precise & Stable Operation:
Precision motor drive, smooth rotation, accuracy deviation <0.01°, no image jitter at any speed.
Comprehensive Security Protection:
Built-in power-off state memory , system dual backup for no data loss.
Strong Environmental Adaptability:
Lens defrosting, dome inflation, whole-machine airtightness, chip/lens heating, stable in harsh environments.

Thermal Module

Image Sensor	VOx Uncooled Focal Plane Arrays
Resolution	39144 x 1280
Pixel Pitch	12 μm
NETD	≤ 35 mK (@25° C,F# = 1.0)
Focal Length	75 mm
Focus Mode	Semi-auto & Manual
IFOV	0.16 mrad
Aperture	F1.0
Field of View	360° × 11.7° (H × V)
Min. Focusing Distance	8 m

Image Effect

Target Coloration

Supported in white hot and black hot mode

PTZ

Movement Range	Pan: 360° Continuous Rotate; Tilt: From -25° to + 45°
Pan Speed	360° / 3.36s

Smart Function

VCA	Support 3 VCA rule types (Intrusion, Region Entrance, and Region Exiting), up to 200 VCA rules
Fire Detection	Dynamic fire point detection, up to 200 fire points detectable

Video and Audio

Main Stream	25 fps (4096 × 2160)
Sub-stream	25 fps (1024 × 1280)
Video Compression	Main stream: H.265/H.264 Sub-stream: H.265/H.264

Network

Protocols	IPV4/IPV6, HTTP, HTTPS, 802.1x, QOS, FTP, SMTP, UPNP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPOE
Network Storage	MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
API	ISAPI, HIKVISION SDK, Open Network Video Interface (Profile S, Profile G, Profile T)
Simultaneous Live View	Up to 20 channels
User/Host level	Up to 32 users, 3 levels: Administrator, Operator, User
Security	User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Client	iVMS-4200, Hik-Connect, Hik-Central, HCP
Web Browser	Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

Interface

Alarm Input	1-ch inputs (0 to 5 VDC)
Alarm Output	1-ch relay outputs, alarm response actions configurable
Alarm Action	SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Communication Interface	1, RJ45 10 M/100 M/1000 M Self-adaptive Ethernet interface. 1, RS-485 interface

General

Menu Language	32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply	30 VDC~60 VDC, two-core terminal block
Power Consumption	Max. 150 W
Working Temperature/Humidity	From -40°C to 60°C (-40°F to 140°F); Humidity: 90% ± 3% (no condensation)
Protection Level	IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

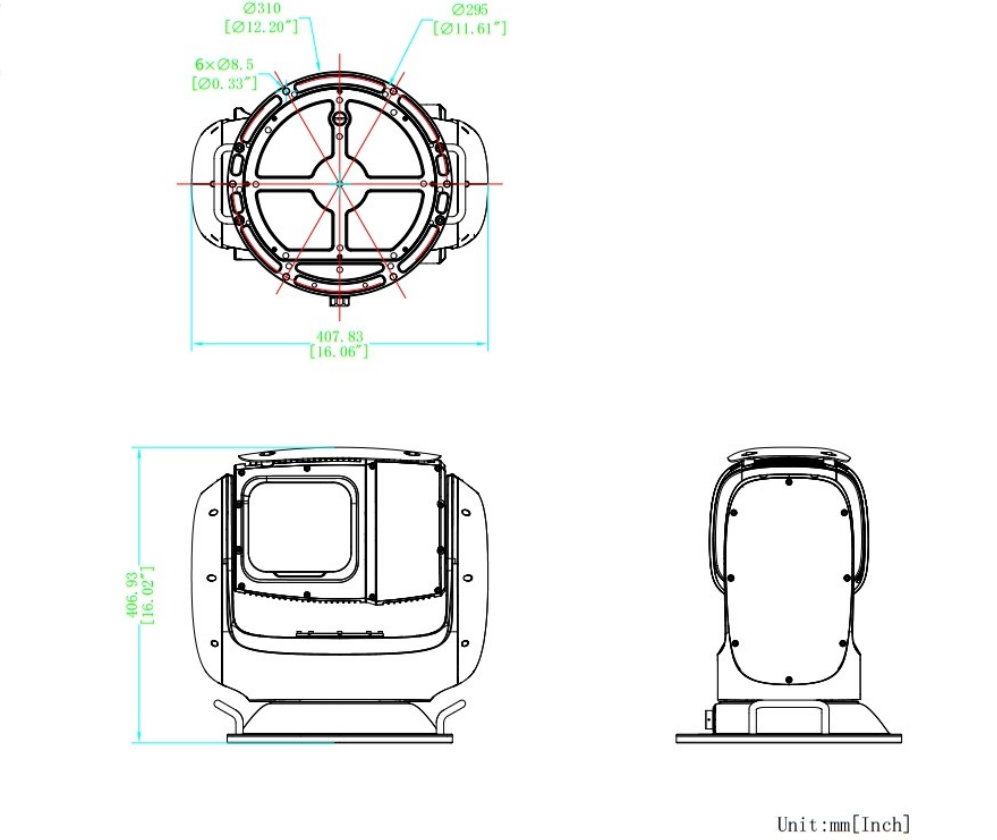

Dimensions	408 mm × 310 mm × 407 mm
Weight	Approx. 25kg (55.1 lb)

Detection Range Table

VCA Range for Humans	1500 m
VCA Range for Vehicles	4500 m

Range Table

VCA Range (Humans: 1.8 × 0.5 m)	VCA Range (Vehicles: 1.4 × 4.0 m)	VCA Range (Vessels: 20 × 5 m)	VCA Range (Drones: 45 × 45 cm)	Fire Detection (Object: 2 × 2 m)
1.5 km	4.5 km	6 km	1 km	6.3 km

DORI

* The table is only for reference and the performance may vary according to different environment
Note: Effective distance values shown are nominal values and should be used as estimates only. Exact value calculations depend on a wide variety of conditions

Target type	Detection Range	Recognition Range	Identification Range
Human (1.8 × 0.5 m)	3.1km	0.8km	0.4km
Vehicle (2.3 × 2.3m)	9.6km	2.4km	1.2km
Ship (10 × 5m)	32.1km	8.0km	4.0km
Ship (20 × 5m)	41.7km	10.4km	5.2km
