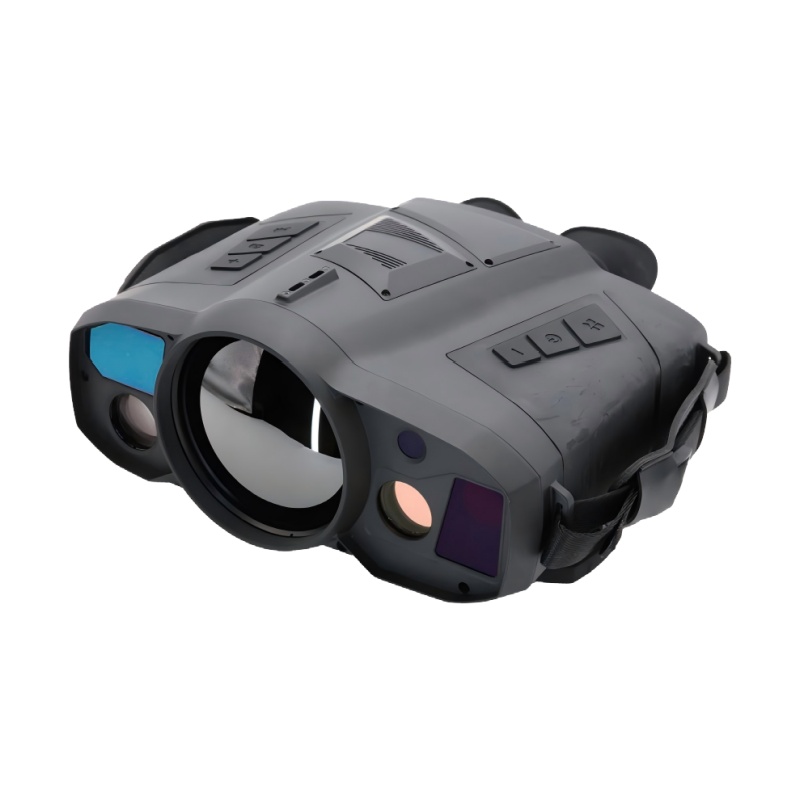

The KTB-1280 binoculars product offers a comprehensive suite of capabilities for situational awareness and decision-making, including target detection utilizing the "Cat Eye effect," infrared or visible light image recognition, laser range finding for coordinate acquisition, and laser pointing and guidance functions.
The product excels in threat detection performance, allowing users to proactively defend against threats, seize the initiative in diverse complex environments, and effectively counter dangerous targets.
"CATEYE EFFECT'" TARGET DETECTION

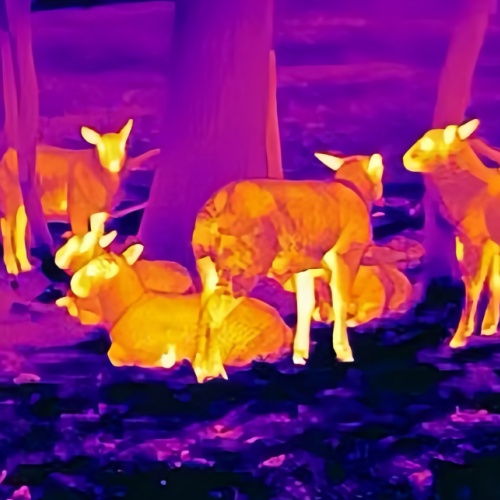

DUAL-CHANNEL HIGH-DEFINITION

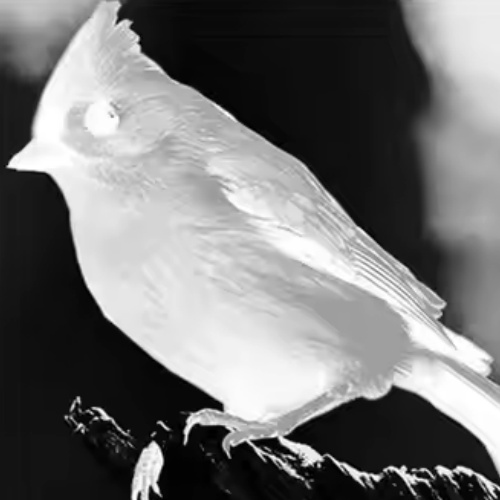

INTELLIGENT RECOGNITION
PRECISE POSITIONING
![]() | ![]() | ![]() | ![]() |
The KTB-1280 binoculars product offers a comprehensive suite of capabilities for situational awareness and decision-making, including target detection utilizing the "Cat Eye effect," infrared or visible light image recognition, laser range finding for coordinate acquisition, and laser pointing and guidance functions.
The product excels in threat detection performance, allowing users to proactively defend against threats, seize the initiative in diverse complex environments, and effectively counter dangerous targets.
"CATEYE EFFECT'" TARGET DETECTION
DUAL-CHANNEL HIGH-DEFINITION
INTELLIGENT RECOGNITION
PRECISE POSITIONING
![]() | ![]() | ![]() | ![]() |
| Category | Item | Specification |
| Thermal Channel | Resolution (Pixels) | 1280×960 |
| Field of View (°) | 8.8×6.6 | |
| Cat Eye Effect | Supported | |
| Max Detection Distance (m) | 1400 | |
| Laser Range Finder | Type (Eye Safe) (nm) | 1535 |
| Max Range (m) | ≥6000 | |
| Accuracy (m) | ±1 | |
| Laser Pointer | Wavelength (nm) | 830 |
| Laser Class | Class 3B | |
| Digital Magnetic Compass | Azimuth Accuracy (RMS) (°) | ±1 |
| Inclination Accuracy (RMS) (°) | ±1 | |
| Internal GPS Receiver | Accuracy (CEP) (m) | 5 |
| Display | Resolution (Pixels) | 1440×1080 (OLED) |
| Color Day Channel | Resolution (Pixels) | 1440×1080 |
| Field of View (°) | 4.1×3.1 | |
| Power Supply | Battery Type | 8×18650 |
| Battery Life (h) | ≥8 | |
| Interfaces | Standard Interface Type | DC/USB/RS232/PAL/HDMI |
| Wireless Interface | WIFI | |
| Physical Parameters | Dimensions (L×W×H) (mm) | 266×278×131 |
| Weight (Include Batteries) (kg) | ≤3.9 | |
| Environmental Adaptability | Immersion Protection Class | IP67 |
