KTB-650

“Long-Range Recon Unimpeded, All-Scenario Clear Vision”

Quantity:
Availability:





Inquire Add to Basket

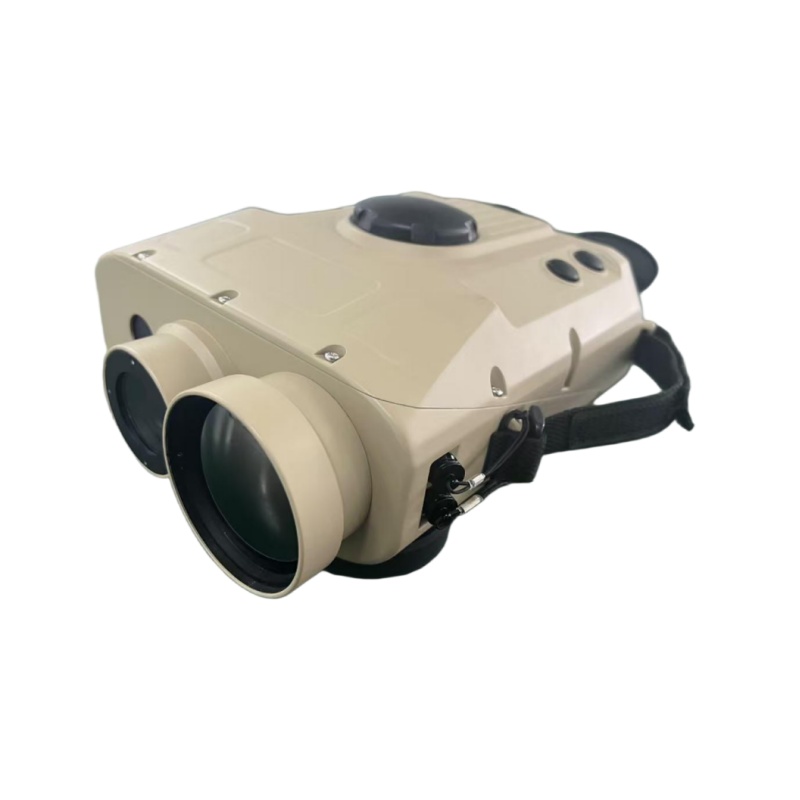

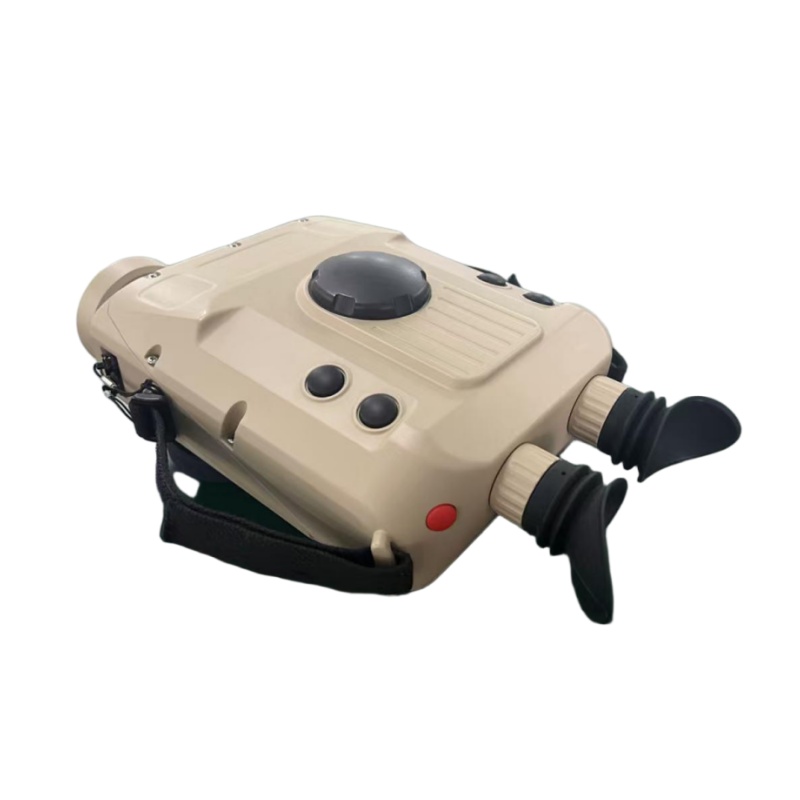

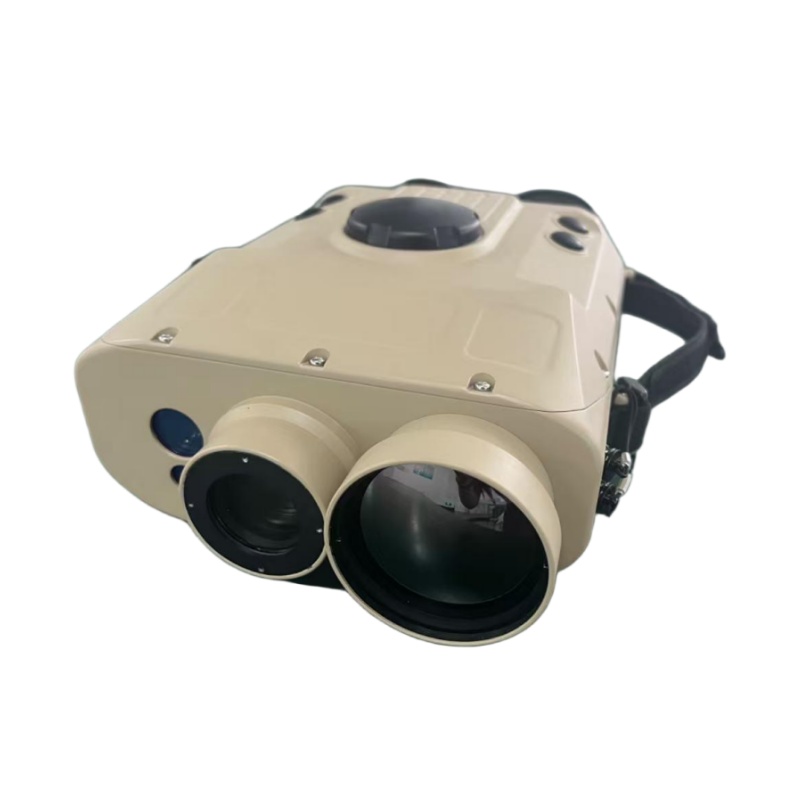

KTB-650 is a cooled handheld infrared observation thermal imager with infrared, visible light, laser ranging, Beidou positioning, compass orientation, photo/video storage and other functions. It can be applied in command, reconnaissance and other fields, as well as in security fields such as anti-terrorism by armed police, border defense and customs.

1. Binocular OLED Display

2. Visible Light Fog Penetration

3. Eye-Safe Laser Ranging

4. Beidou Target Positioning

Related Products

KTB-1280

KTB-670

KTB-640

Category	Item	Specification
Infrared Indicators	a. Resolution	640 x 512
	b. Wavelength	3 ~ 5 µm
	c. Field of View	WFoV: 7°x5.2° ~ NFoV: 2.3°x1.7°, Continuous Zoom
	d. Cooling Time	≤ 6 min
Visible Light Indicators	a. Sensor Type	High-Definition Color CMOS
	b. Pixel Format	2 Megapixels
	c. Field of View	WFoV: 7°x5.2° ~ NFoV: 1.8°x1.3°, Continuous Zoom
	d. Fog Penetration	When visibility ≤4km, fog penetration rate is 1.5
Operating Distance	a. Infrared Human Recognition	≥ 4km
	b. Infrared Vehicle Recognition	≥ 8km
	c. Visible Light Human Recognition	≥ 6km
	d. Visible Light Vehicle Recognition	≥ 10km
Ranging Range & Accuracy	a. Ranging Range for Vehicles	70m~9km
Ranging Range & Accuracy	b. Ranging Accuracy	±2m
Display	a. Display Specification	High-Definition OLED, 1280 x 1024
Diopter Adjustment	a. Adjustment Range	-4°~ +4°
Beidou Positioning	a. Positioning Accuracy	Horizontal: 0.53M (CEP), Altitude: 0.42m (PE)
Target Positioning	a. Function & Accuracy	Supports target positioning. When observation distance is 3km, target positioning accuracy is 3.0m (CEP)
Magnetic Azimuth Measurement	a. Function & Accuracy	Supports magnetic azimuth measurement. Accuracy: 0.275°
Image & Video Storage	a. Storage Capacity	Not less than 1000 JPEG images or 4 hours of video
Power Supply	a. Battery Life	Continuous working time ≥6 hours
Power Supply	b. External Power Mode	Yes
Dimension & Weight	a. Dimension	≤ 29020090mm
Dimension & Weight	b. Weight	≤ 3.3kg (including battery and eyecup)
Protection Class	a. Protection Rating	IP68
Environmental Adaptability	a. Operating Temperature	-40℃ ~ +55℃
Environmental Adaptability	b. Storage Temperature	-55℃ ~ +70℃
