KTB-670

“Long-Range Recon Unimpeded, All-Scenario Clear Vision”

Quantity:
Availability:





Inquire Add to Basket

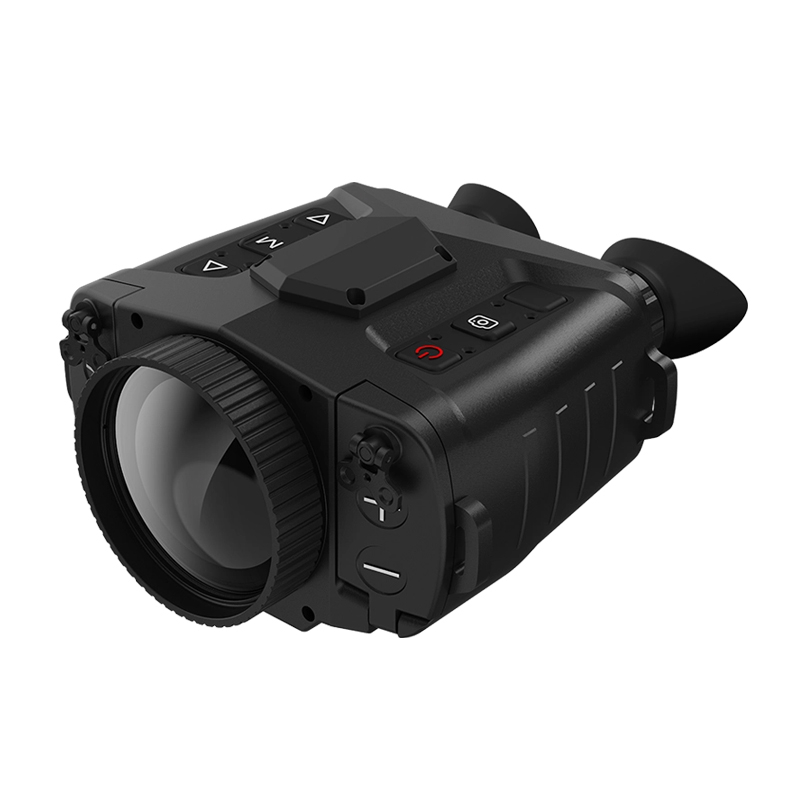

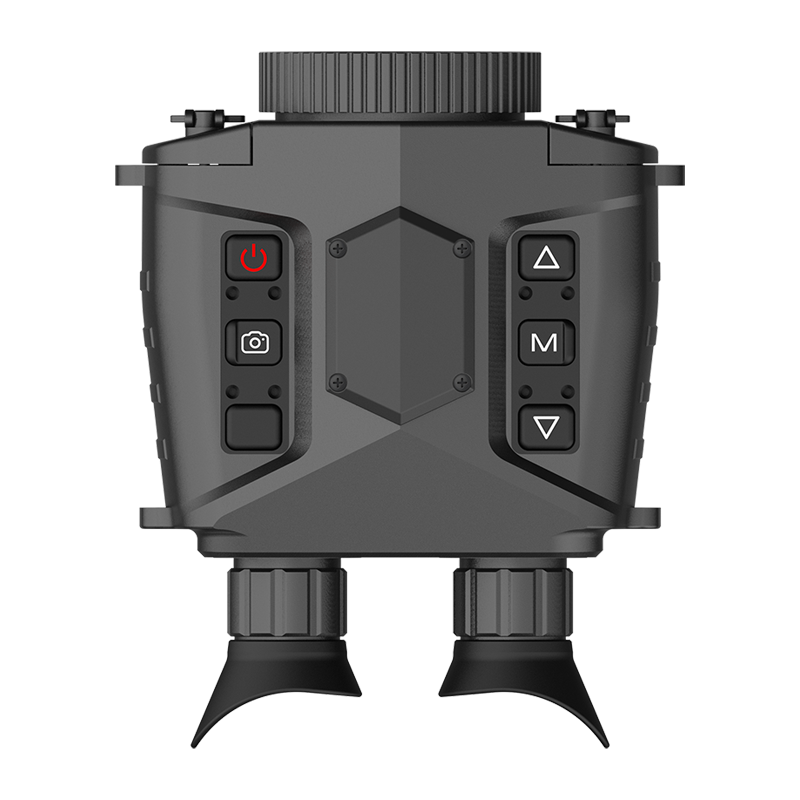

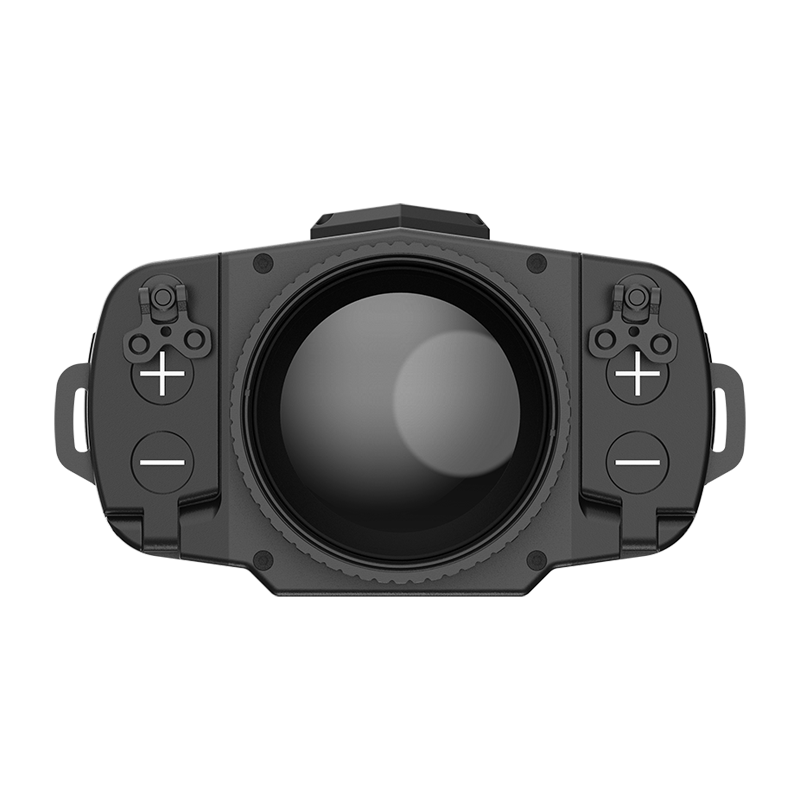

KTB-670 is an uncooled handheld infrared observation device, lightweight, portable and multifunctional. It adopts infrared thermal imaging for target search, accurate identification and aiming, with ultra-long battery life, waterproof and dustproof, and rugged durability, delivering excellent performance in any harsh environment.

Anti-scald + Fog Penetration
1.0-4.0× Continuous Electronic Zoom
Hotspot Tracking + Cursor
High-Definition SDI Display
GPS Positioning & Electronic Compass
Self/Target Positioning

Related Products

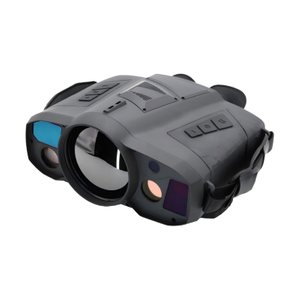

KTB-1280

KTB-650

KTB-640

Category	Item	Specification
Thermal Imager Parameters	Sensor Type	Vanadium Oxide (VOX) Uncooled Sensor
	Resolution	640×512
	Pixel Size	12μm
	Focal Length	70mm F1.0
	Field of View	7.0°×4.8°
	Frame Rate	50fps
	Detection Distance	3.2km
	Functions	Manual Focus, Hotspot Tracking + Crosshair, Anti-Burn
System Functions & Parameters	Image Modes	Black Hot, White Hot, Red Hot, Green Hot, Visible Light, Picture-in-Picture
	Digital Zoom	1×, 2×, 4×
	Display Screen	OLED
	Display Resolution	1920×1080
	Languages Supported	Chinese/English/Russian, etc.
	Functions	Fog Penetration, Photo Taking, Video Recording, WiFi Transmission, Bluetooth Control, Target Positioning Calculation
	Storage	Built-in 64GB eMMC
	Interface	Type-C Power Supply and Derivative Interfaces
	Positioning and Direction Finding	GPS Positioning + Electronic Compass, World-class System, Autonomous Positioning and Target Positioning
	Battery	18650 Battery / TYPE-C
	Battery Life	8 Hours
	Installation Method	1/4 Standard Tripod
	Weight	1.2kg
	Dimension	169×139×85mm
	Protection Class	IP67
	Operating Environment	-30℃~+70℃

Category	Item	Specification
Thermal Imager Parameters	Sensor Type	Vanadium Oxide (VOX) Uncooled Sensor
	Resolution	640×512
	Pixel Size	12μm
	Focal Length	70mm F1.0
	Field of View	7.0°×4.8°
	Frame Rate	50fps
	Detection Distance	3.2km
	Functions	Manual Focus, Hotspot Tracking + Crosshair, Anti-Burn
System Functions & Parameters	Image Modes	Black Hot, White Hot, Red Hot, Green Hot, Visible Light, Picture-in-Picture
	Digital Zoom	1×, 2×, 4×
	Display Screen	OLED
	Display Resolution	1920×1080
	Languages Supported	Chinese/English/Russian, etc.
	Functions	Fog Penetration, Photo Taking, Video Recording, WiFi Transmission, Bluetooth Control, Target Positioning Calculation
	Storage	Built-in 64GB eMMC
	Interface	Type-C Power Supply and Derivative Interfaces
	Positioning and Direction Finding	GPS Positioning + Electronic Compass, World-class System, Autonomous Positioning and Target Positioning
	Battery	18650 Battery / TYPE-C
	Battery Life	8 Hours
	Installation Method	1/4 Standard Tripod
	Weight	1.2kg
	Dimension	169×139×85mm
	Protection Class	IP67
	Operating Environment	-30℃~+70℃
