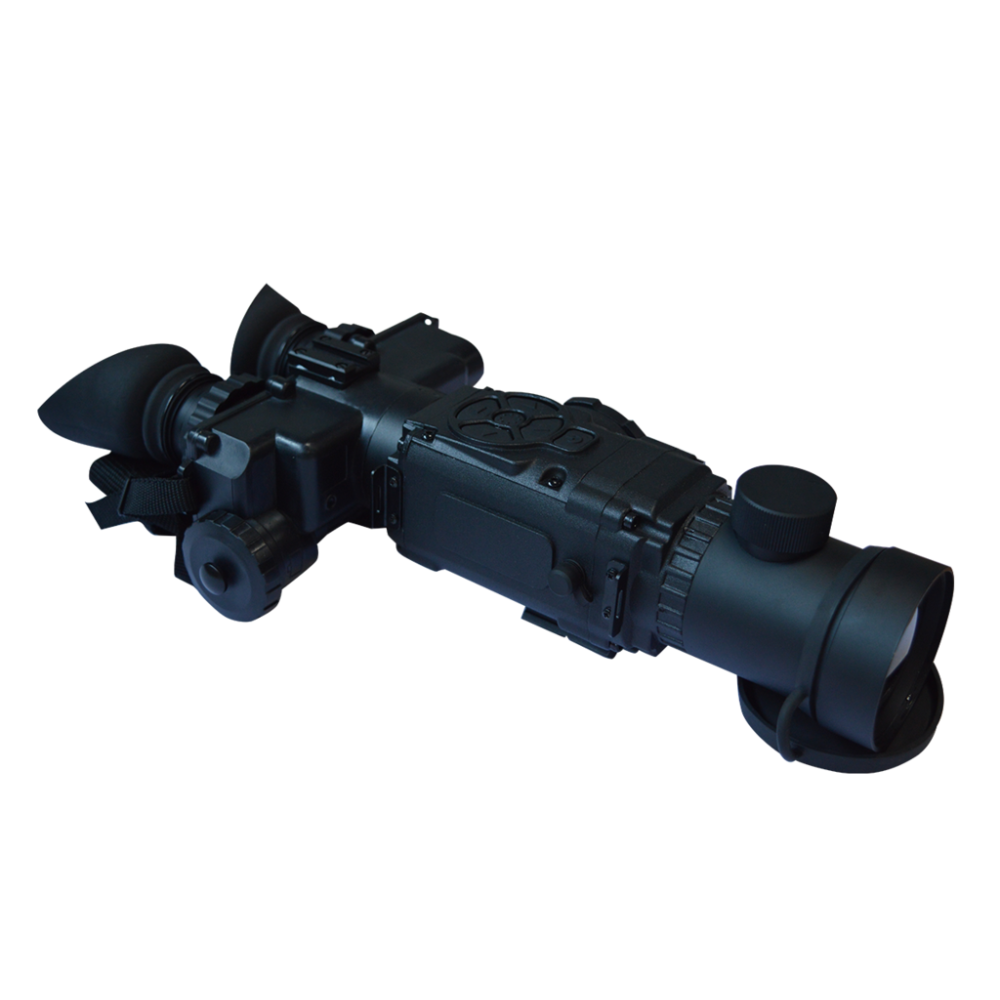

KTM-670 is a high-magnification binocular thermal imaging night vision device, an application of modern optoelectronic technology. It is usable in all weather conditions, suitable for long-range target detection and monitoring. Different resolution detectors and objectives can be replaced to transform it into thermal imaging instruments with varying performances, meeting the needs of users in more diverse fields.
Interpupillary Distance Adjustable
High-Magnification Lens
Waterproof and Shockproof
Multiple Color Image Modes
![]() | ![]() | ![]() | ![]() |
KTM-670 is a high-magnification binocular thermal imaging night vision device, an application of modern optoelectronic technology. It is usable in all weather conditions, suitable for long-range target detection and monitoring. Different resolution detectors and objectives can be replaced to transform it into thermal imaging instruments with varying performances, meeting the needs of users in more diverse fields.
Interpupillary Distance Adjustable
High-Magnification Lens
Waterproof and Shockproof
Multiple Color Image Modes
![]() | ![]() | ![]() | ![]() |
| Detector (Image Resolution) | 640×512 Pixels |
| Detector Type | Uncooled Vanadium Oxide |
| Detector Pixel Size | 12 μm |
| Display | Color OLED Matrix, Super VGA <800×600 |
| Objective Aperture | 75mm |
| Field of View | 5.9°×4.7° (H×V) |
| Electronic Magnification | 1×-6× |
| Diopter Adjustment | -3, +3 |
| Adult Detection Distance | 3000 m |
| Adult Recognition Distance | 1200 m |
| Brightness Adjustment | Manual |
| Contrast Adjustment | Automatic |
| Photo/Video Recording | Supported |
| Storage Capacity | 32GB |
| WiFi | Supported |
| Electronic Compass | Supported |
| Polarity Control | White Hot/Black Hot/Multiple Color Modes |
| Boot Time | <5 Seconds |
| Environmental Protection | Waterproof, Dustproof |
| Operating Temperature (℃) | -40° to +50° |
| Storage Temperature (℃) | -50° to +85° |
| Battery Type | 4×CR123 |
| Continuous Battery Life | ≥3h |
| Video Output Cable | Optional |
| Low Battery Indicator | Yes |
| Dimension | 320×155×90 mm |
| Weight | 1210g |
| Detector (Image Resolution) | 640×512 Pixels |
| Detector Type | Uncooled Vanadium Oxide |
| Detector Pixel Size | 12 μm |
| Display | Color OLED Matrix, Super VGA <800×600 |
| Objective Aperture | 75mm |
| Field of View | 5.9°×4.7° (H×V) |
| Electronic Magnification | 1×-6× |
| Diopter Adjustment | -3, +3 |
| Adult Detection Distance | 3000 m |
| Adult Recognition Distance | 1200 m |
| Brightness Adjustment | Manual |
| Contrast Adjustment | Automatic |
| Photo/Video Recording | Supported |
| Storage Capacity | 32GB |
| WiFi | Supported |
| Electronic Compass | Supported |
| Polarity Control | White Hot/Black Hot/Multiple Color Modes |
| Boot Time | <5 Seconds |
| Environmental Protection | Waterproof, Dustproof |
| Operating Temperature (℃) | -40° to +50° |
| Storage Temperature (℃) | -50° to +85° |
| Battery Type | 4×CR123 |
| Continuous Battery Life | ≥3h |
| Video Output Cable | Optional |
| Low Battery Indicator | Yes |
| Dimension | 320×155×90 mm |
| Weight | 1210g |
