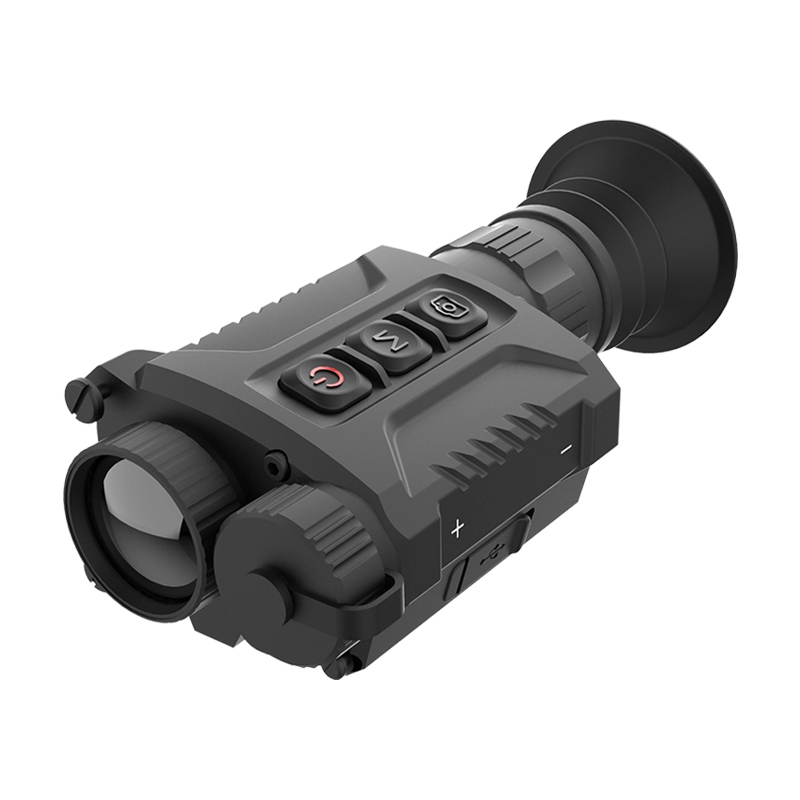

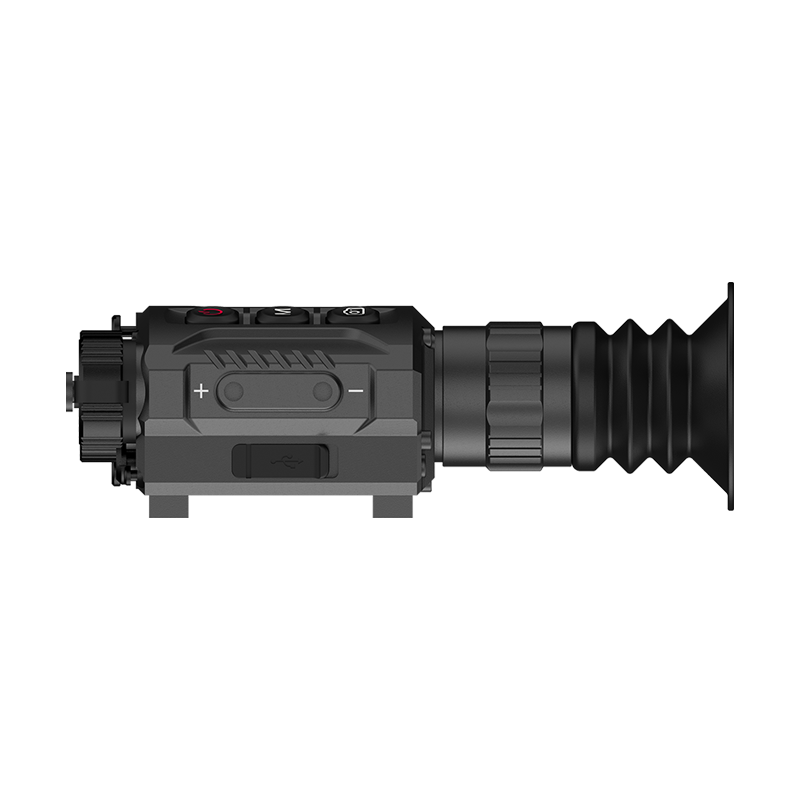

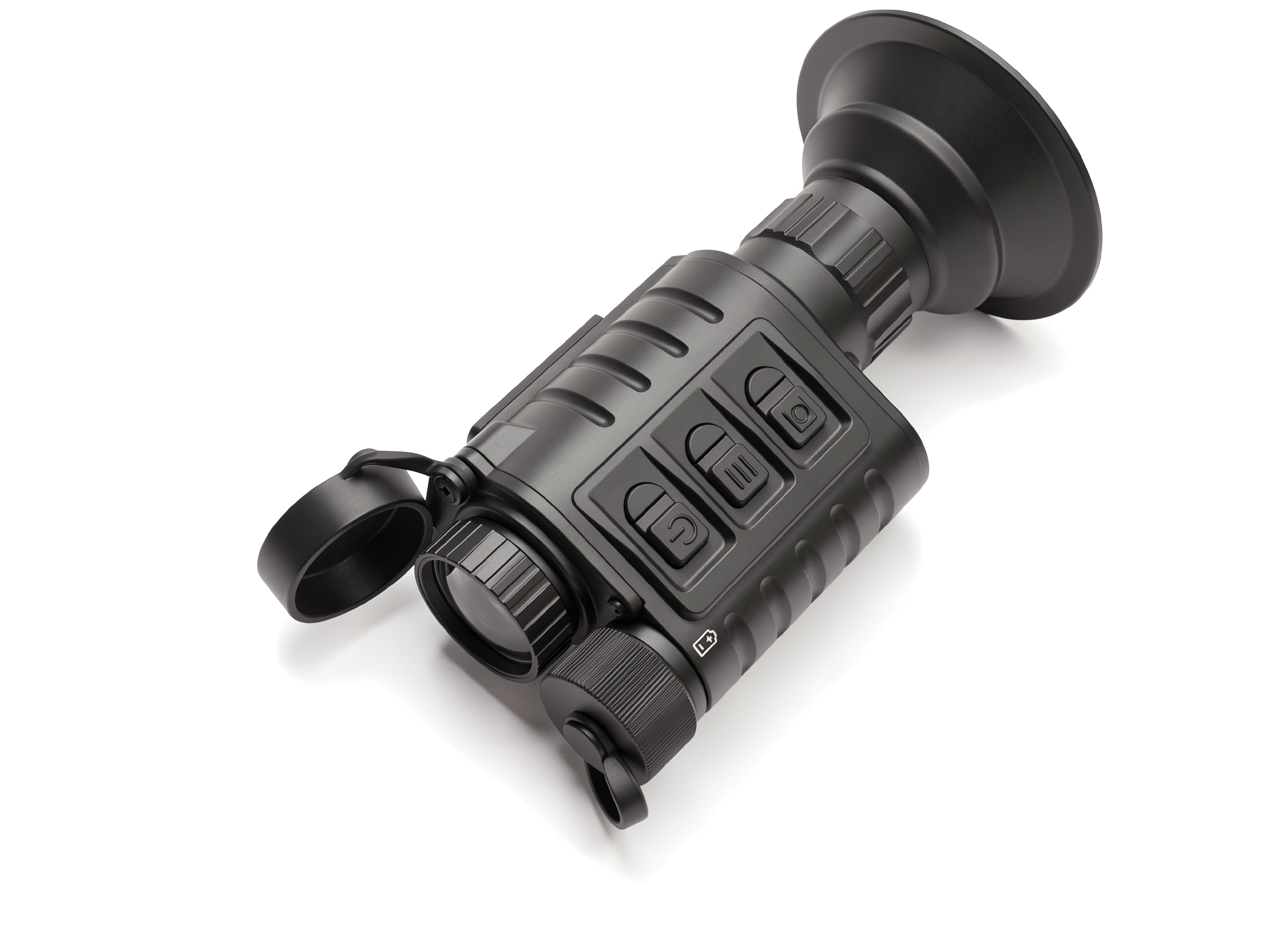

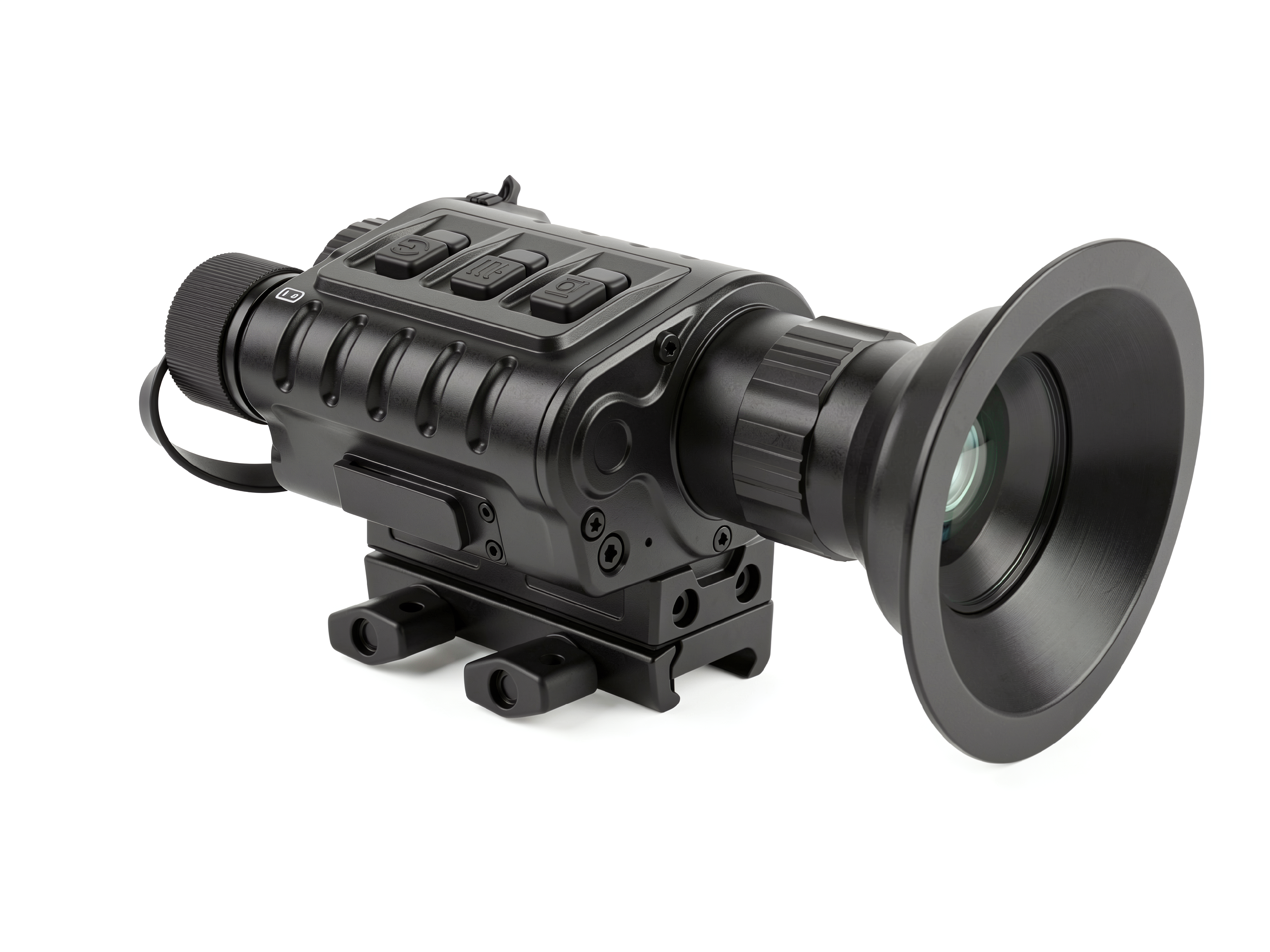

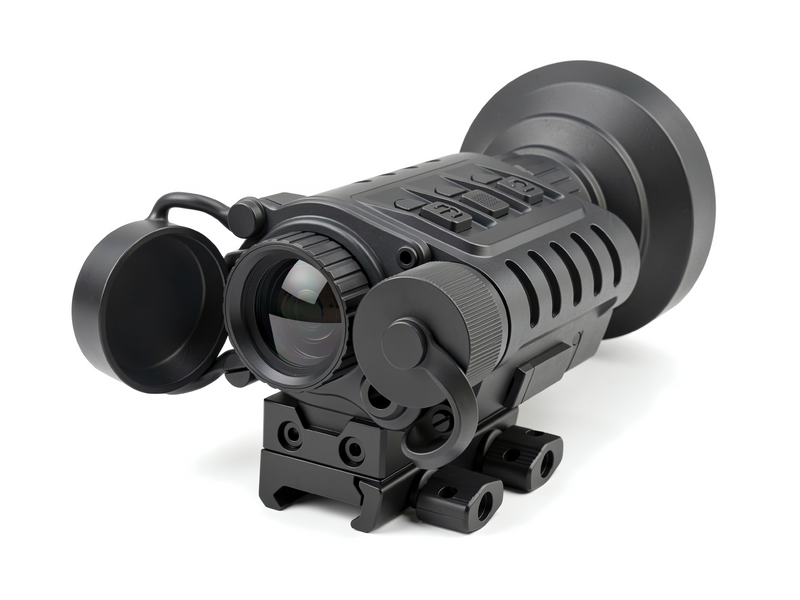

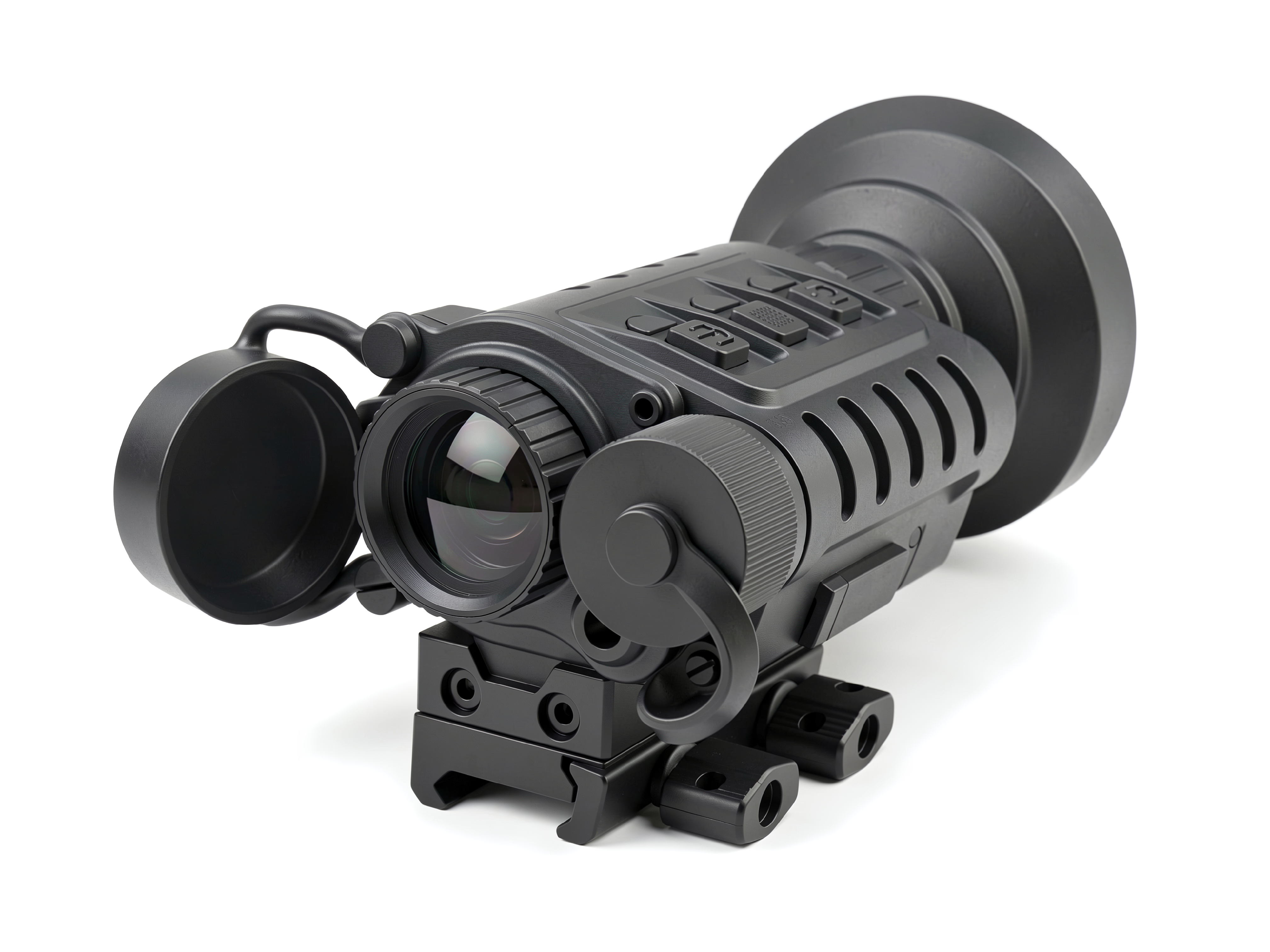

KTS-620 is a miniature optoelectronic system integrating four tactical function modes. It has passed MIL-STD-810H impact certification, making it an ideal tactical equipment for special operations and security patrols.
Military-grade magnesium alloy frame, 640×512@12μm dual-mode infrared sensor, HD AMOLED display, 4K video recording/playback.
Modular quick-release (5s mode switch), IP67 protection, dual 18650 batteries (8-hour battery life).
![]() | ![]() | ![]() | ![]() |
KTS-620 is a miniature optoelectronic system integrating four tactical function modes. It has passed MIL-STD-810H impact certification, making it an ideal tactical equipment for special operations and security patrols.
Military-grade magnesium alloy frame, 640×512@12μm dual-mode infrared sensor, HD AMOLED display, 4K video recording/playback.
Modular quick-release (5s mode switch), IP67 protection, dual 18650 batteries (8-hour battery life).
![]() | ![]() | ![]() | ![]() |
| Category | Item | Specification |
| Sensor | Type | VOx Uncooled Sensor, 8-14μm |
| Resolution | 640×512@12μm | |
| Noise Equivalent Temperature Difference (NETD) | ≤20mK (@25°C, F#1.0, 25Hz) | |
| Frame Rate | 50Hz | |
| Lens | Objective Focal Length | 25mm/F1.0 |
| Field of View (±0.3°) | 17.2°×13.7° | |
| Magnification | 1.44×-11.52× | |
| Exit Pupil Distance | 35mm | |
| Diopter Adjustment | -4~+4 | |
| Detection Distance | 1200m | |
| Display | Type | 0.39-inch OLED |
| Resolution | 1024×768 | |
| Hardware | WiFi | Supported |
| Interface | USB-C Port | |
| System | Recording Function | Photo/Video (Audio Recording Supported) |
| Storage Capacity | 64GB | |
| Power Supply | Battery Type | 1×18650 Battery |
| Continuous Working Time | 6 Hours | |
| Environmental Adaptability | Operating Temperature | -20°C~+50°C |
| Shock Resistance | 1000g | |
| Protection Class | IP67 | |
| Physical Parameters | Weight | 360g |
| Dimension | 152×67×53mm |
| Category | Item | Specification |
| Sensor | Type | VOx Uncooled Sensor, 8-14μm |
| Resolution | 640×512@12μm | |
| Noise Equivalent Temperature Difference (NETD) | ≤20mK (@25°C, F#1.0, 25Hz) | |
| Frame Rate | 50Hz | |
| Lens | Objective Focal Length | 25mm/F1.0 |
| Field of View (±0.3°) | 17.2°×13.7° | |
| Magnification | 1.44×-11.52× | |
| Exit Pupil Distance | 35mm | |
| Diopter Adjustment | -4~+4 | |
| Detection Distance | 1200m | |
| Display | Type | 0.39-inch OLED |
| Resolution | 1024×768 | |
| Hardware | WiFi | Supported |
| Interface | USB-C Port | |
| System | Recording Function | Photo/Video (Audio Recording Supported) |
| Storage Capacity | 64GB | |
| Power Supply | Battery Type | 1×18650 Battery |
| Continuous Working Time | 6 Hours | |
| Environmental Adaptability | Operating Temperature | -20°C~+50°C |
| Shock Resistance | 1000g | |
| Protection Class | IP67 | |
| Physical Parameters | Weight | 360g |
| Dimension | 152×67×53mm |
