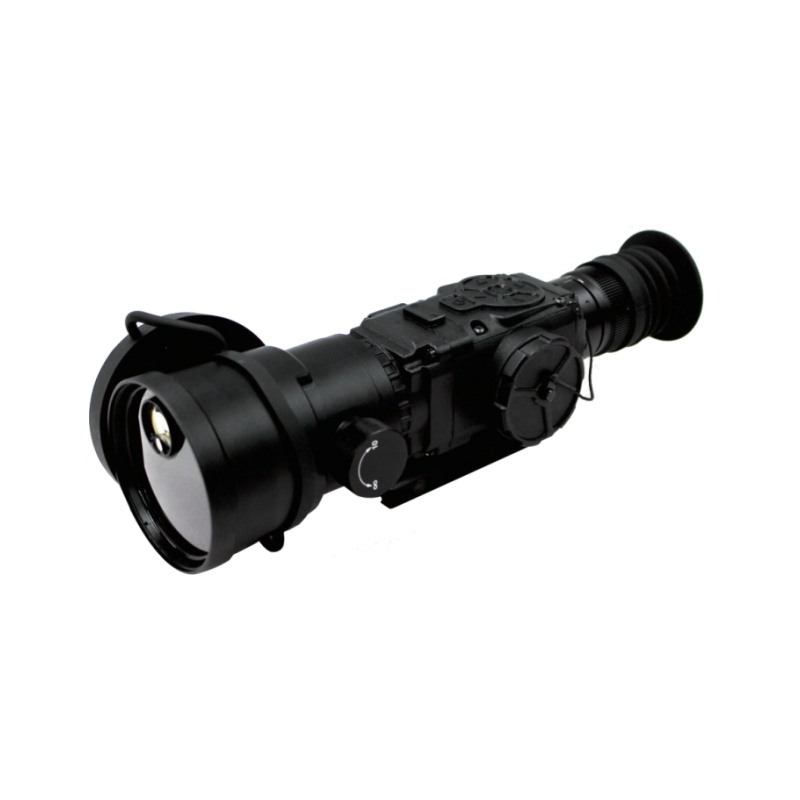

KTS-670 can be mounted on individual light weapons for target detection and aiming, mainly used for nighttime observation and aiming of single living targets, day-night image acquisition and transmission, etc.
Standard Picatinny Rail
Removable Battery
Electronic Compass
Photo/Video Storage
Wi-Fi (App Connection)
Laser Ranging
High-Performance Thermal Sensor
![]() | ![]() | ![]() | ![]() |
KTS-670 can be mounted on individual light weapons for target detection and aiming, mainly used for nighttime observation and aiming of single living targets, day-night image acquisition and transmission, etc.
Standard Picatinny Rail
Removable Battery
Electronic Compass
Photo/Video Storage
Wi-Fi (App Connection)
Laser Ranging
High-Performance Thermal Sensor
![]() | ![]() | ![]() | ![]() |
| Thermal Imaging Core | Detector Type | Uncooled Vanadium Oxide |
| Detector Resolution | 640×512 | |
| Pixel Size | 12 μm | |
| Optics | Objective Focal Length | f75 F1.5 |
| Field of View (FOV) | 5.9°×4.7° | |
| Detection Capability | ≥3000m | |
| Recognition Capability | ≥1200m | |
| Laser Ranging Capability | ≥1200m | |
| Focusing Range | 10m~∞ | |
| Electronic Magnification | 1~6X | |
| Eye Relief | 252mm | |
| Diopter Adjustment | -3~+3 | |
| Display | Type | OLED |
| Resolution | 800×600 Pixels | |
| Power Supply | Battery Type | CR123 |
| Number of Batteries | 4 | |
| Maximum Operating Time | ≥3h | |
| Functions | Photo/Video Recording | Supported |
| Storage Capacity (GB) | 64 | |
| Wi-Fi | Supported | |
| Electronic Compass | Supported | |
| Weight (Without Batteries) | <1200 g | |
| Dimension (mm) | 310×92×92 | |
| Main Structure Material & Environmental Adaptability | Magnesium-Aluminum Alloy | |
| Environmental Adaptability | Operating Temperature | -40℃~55℃ |
| Storage Temperature | -55℃~70℃ | |
| Waterproof Rating | IP67 | |
| Shock Resistance | ≥1000 g |
